Description:
– 4 IP channel max, up to 16MP resolution
– Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
– VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
– 1 SATA III port, up to 16 TB for a single HDD
– No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1
– Desktop mounted chassis
– AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
– AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
– Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
– Other brands IP cameras supported
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104-EI

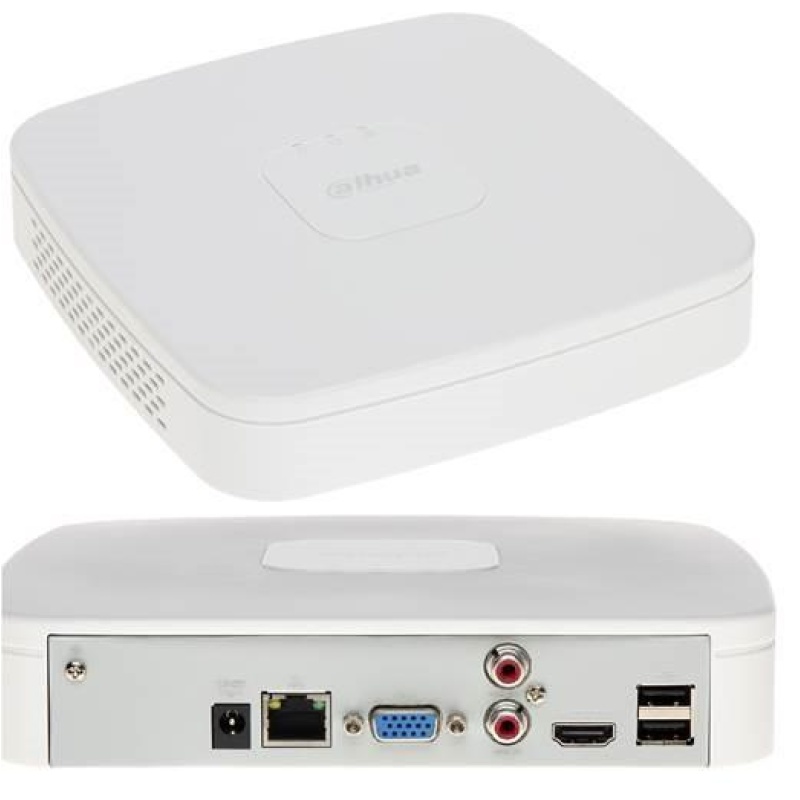

Model: NVR4104-EI
Number of Channels: 4
Number of drives/bays: 1
15pin D-sub: 1
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
Power supply requirements: 12 VDC, 2 A
Power consumption: 10
Dimensions: 204.6 mm × 206.4 mm × 45.6 mm
Operating temperature range: –10 °C to +55 °C
Colour: White
Units per Shipping Box: 1
Shipping Box Depth: 36.5
Shipping Box Height: 26
Shipping Box Weight: 1.07
Shipping Box Width: 9.5
Unit Calculated Volume: 0.009015
Product Net Weight: 0.45
Unit Calculated Weight: 1.07
CnCode: 85219000
Unit Box Width: 0.095
Unit Box Length: 0.365
Unit Box Height: 0.26
Full Description Line: Channels 4|Drives/bays 1|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|Power supply requirements 12 VDC, 2 A|Power consumption 10 Watts|Dim. 204.6 mm × 206.4 mm × 45.6 mm|Temp. range –10 °C to +55 °C|Colour White
Category Code: NVR
