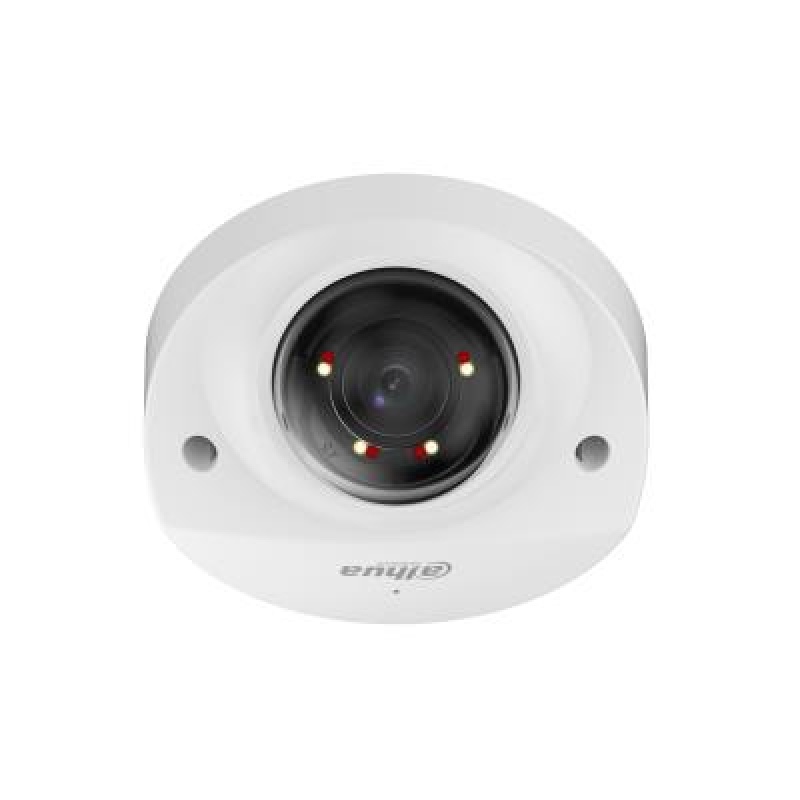

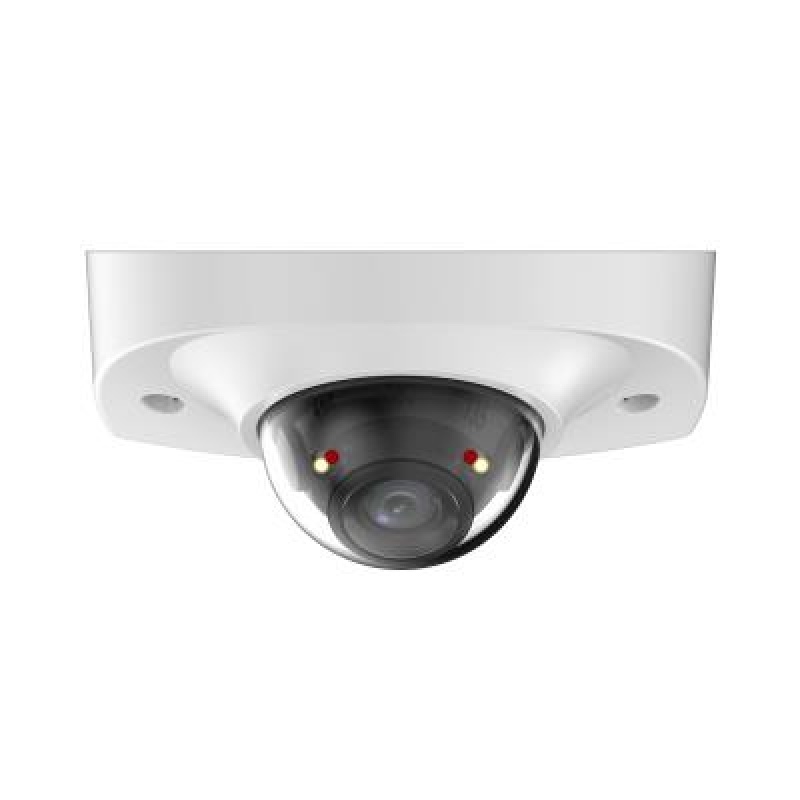

Description: IPC-HDBW2449F-AS-IL
4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
>4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 and IK10 protection.
>SMD Plus.
Vendor Homepage: www.dahuasecurity.com/es/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDBW2449F-AS-IL
Model: IPC-HDBW2449F-AS-IL-0280B
Camera design: Dome
Network Camera Type: Fixed/Outdoor
Pixel Resolution: 4
Focal Length: 2.8 mm; 3.6 mm
IR Illumination: Yes
Sensor size: 1/2.9″ CMOS
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.006
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Power options: 12V/PoE
Power supply requirements: Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)
Power consumption: 2.3
Operating temperature range: –40 °C to +60 °C
Dimensions: 55.0 mm × Φ108.9 mm
Units per Shipping Box: 1
Shipping Box Depth: 14
Shipping Box Height: 8.5
Shipping Box Weight: 0.54
Shipping Box Width: 13.5
Unit Calculated Volume: 0.001607
Product Net Weight: 0.41
Unit Calculated Weight: 0.54
CnCode: 85258900
Unit Box Width: 0.135
Unit Box Length: 0.14
Unit Box Height: 0.085
Full Description Line: Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm; 3.6 mm|IR Illumination|Sensor size 1/2.9″ CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.006 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Power options PoE/12V|Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)|Operating temperature range –40 °C to +60 °C|Dimensions 55.0 mm × Φ108.9 mm
Category Code: FNC
