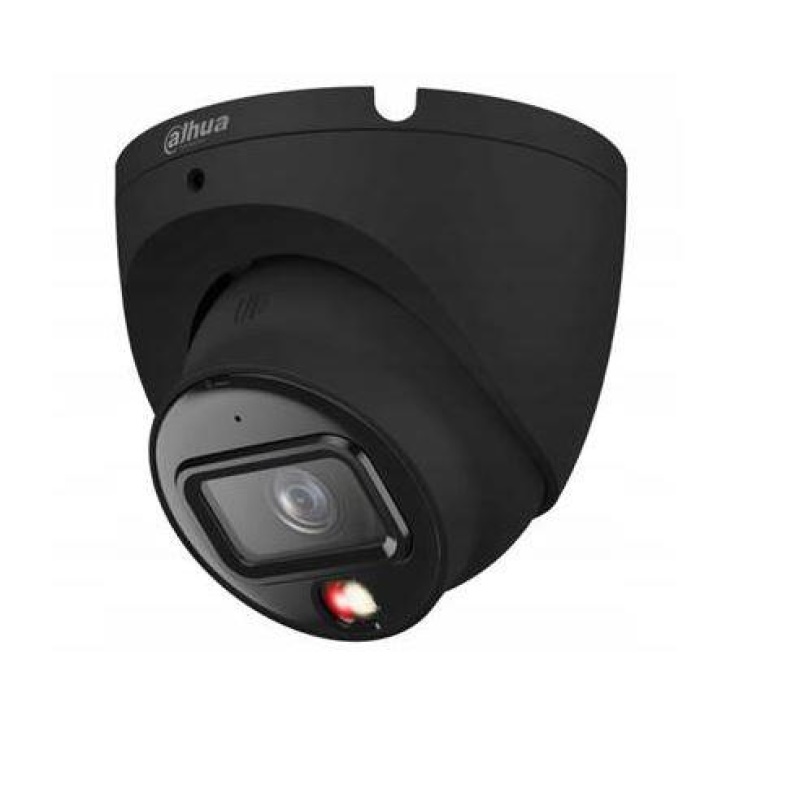

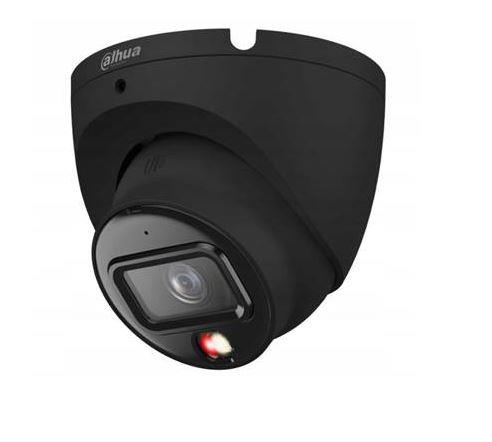

Description: IPC-HDW1639T-AIL0280BS6-B
> 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.
> Focal Length 2.8 mm, Field of View 110°
Vendor Homepage: www.dahuasecurity.com
Model: IPC-HDW1639T-AIL0280BS6-B
Camera design: Eyeball
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 6
Focal Length: 2.8 mm
IR Illumination: Yes
Sensor size: 1/2.7″ CMOS
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0007
Effective pixels: 3200 × 1800
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
RJ45: 1
Power options: PoE
Power supply requirements: 12 VDC/PoE (802.3af)
Power consumption: 5.3
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Colour: Black
Dimensions: 85.6 mm × Φ94.0 mm
Units per Shipping Box: 1
Shipping Box Depth: 11.5
Shipping Box Height: 11
Shipping Box Weight: 0.45
Shipping Box Width: 11
Unit Calculated Volume: 0.001391
Product Net Weight: 0.34
Unit Calculated Weight: 0.45
CnCode: 85258900
Unit Box Width: 0.11
Unit Box Length: 0.115
Unit Box Height: 0.11
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 6 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7″ CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 3200 × 1800|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 85.6 mm × Φ94.0 mm
Category Code: FNC
