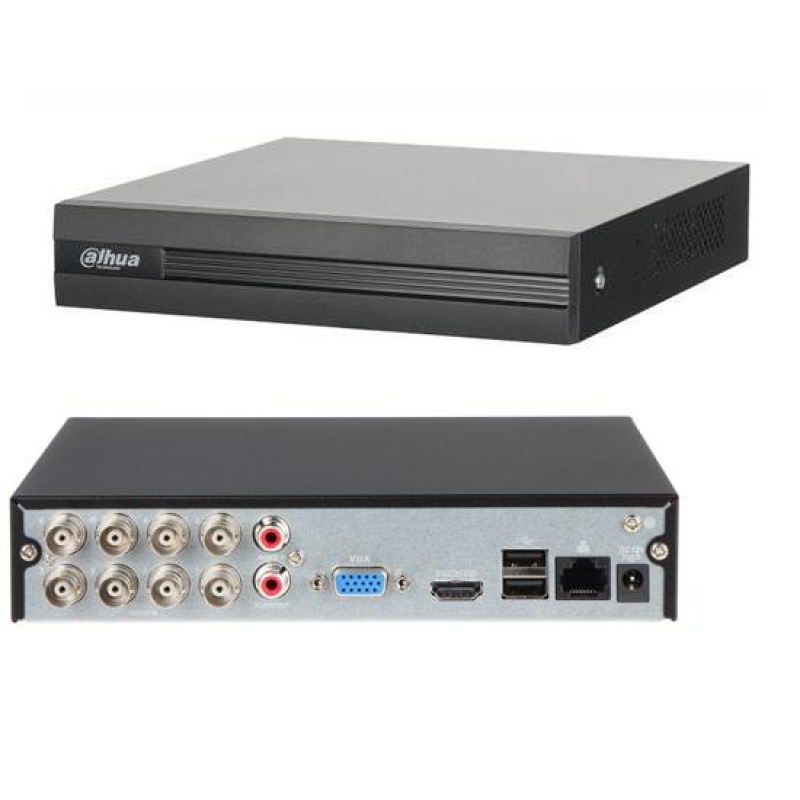

Description: 8 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder
Pentabrid capability: Each channel supports HDCVI, AHD, TVI, CVBS and IP Video input
8-channel BNC interface
HDCVI/AHD/HD-TVI recording: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps)
IP: Max 10 channels IP camera inputs, each channel up to 6MP; Max 40 Mbps incoming bandwidth
Video Compression: AI Coding/H.265+/H.265/H.264+/H.264, ONVIF 16.12, CGI Conformant
SMD Plus: 4 channels, Search by target classification (Human, Vehicle)
G.711A; G.711U; PCM video/audio compression
1x SATA interface up to 6TB storage
VGA/HDMI up to Full HD output, RJ-45, 2x USB ports
No front panel control, 1/1 Audio I/O, no Alarm I/O
Mini 1U case, mouse included
P2P, Coaxial Audio/Alarm/Upgrade
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/Cooper-I-Series/XVR1B08-I
DVR type: 8 Channel
Camera Compatibility: AHD 1080P/Analog/HDCVI 1080P/HDCVI 720P/HD-TVI/TurboHD 1080P/HD-TVI/TurboHD 720P
Number of channels: 8
15pin D-sub: 1
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
Power supply requirements: DC 12 V/1.5 A
Dimensions: 198 × 202.9 × 41.5mm
Units per Shipping Box: 1
Shipping Box Depth: 33
Shipping Box Height: 10
Shipping Box Weight: 1.14
Shipping Box Width: 25.5
Unit Calculated Volume: 0.008415
Product Net Weight: 0.62
Unit Calculated Weight: 1.14
CnCode: 85219000
Unit Box Width: 0.255
Unit Box Length: 0.33
Unit Box Height: 0.1
Full Description Line: 8 Channel|Camera Compatibility Analog/AHD 1080P/HDCVI 720P/HDCVI 1080P/HD-TVI/TurboHD 720P/HD-TVI/TurboHD 1080P|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|DC 12 V/1.5 A
Category Code: STD
