Description: IPC-HDW3541EMS0280BS2-B

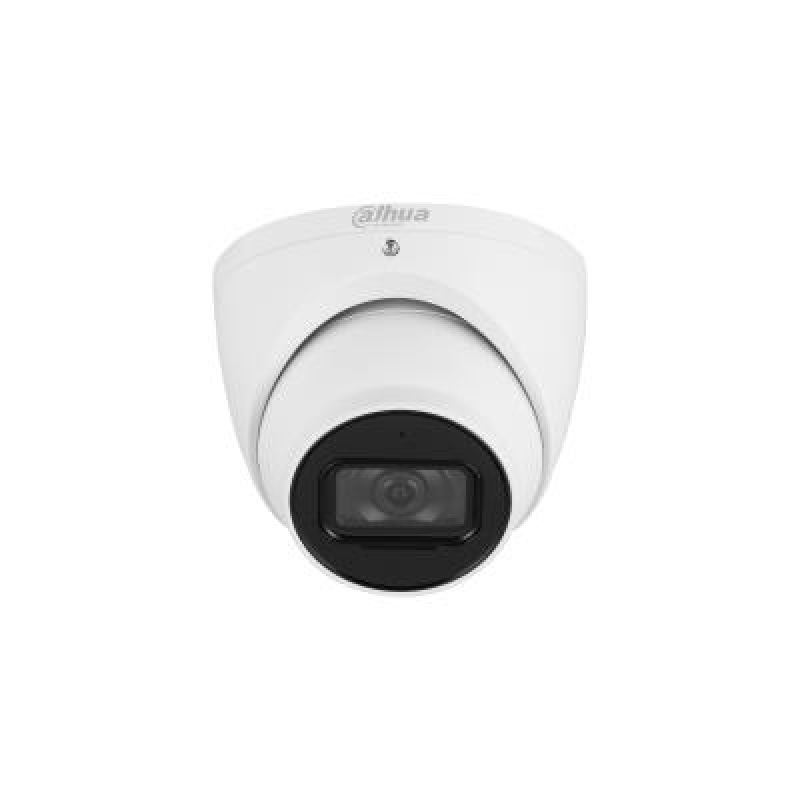

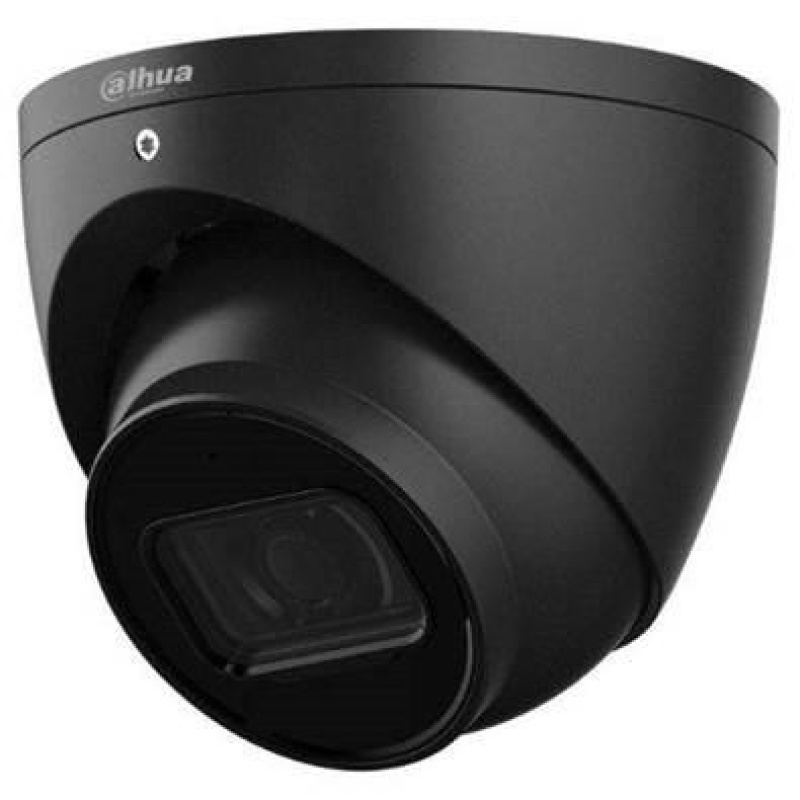

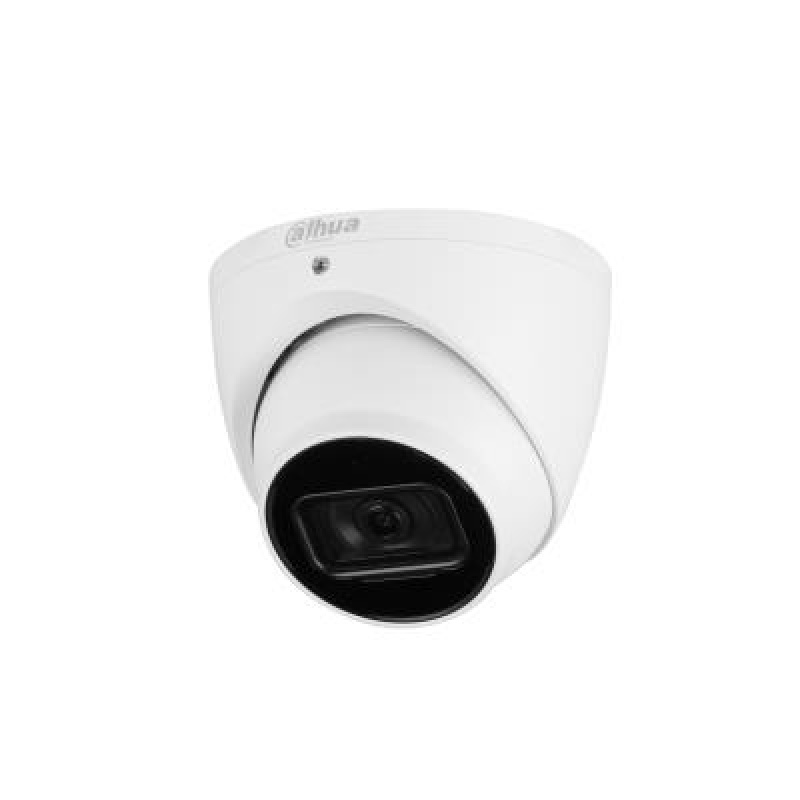

5MP IR Fixed-focal Eyeball WizSense Network Camera
> 5-MP 1/2.7″ CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
> Focal Length 2.8 mm, Field of View 97°
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/IR/IPC-HDW3541EM-S-S2=S2
Model: IPC-HDW3541EMS0280BS2-B
Camera design: Eyeball
Network Camera Type: Fixed/HDTV/Megapixel/Outdoor
Pixel Resolution: 5
Focal Length: 2.8 mm
IR Illumination: Yes
Sensor size: 1/2.7″ CMOS
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0005
Effective pixels: 2960 (H) × 1688 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC; PoE
Operating temperature range: –40 °C to +60 °C
Colour: Black
Units per Shipping Box: 20
Shipping Box Depth: 79
Shipping Box Height: 29.5
Shipping Box Weight: 15.7
Shipping Box Width: 33.5
Unit Calculated Volume: 0.003904
Product Net Weight: 0.7
Unit Calculated Weight: 0.785
CnCode: 85258900
Unit Box Width: 0.14
Unit Box Length: 0.155
Unit Box Height: 0.16
Full Description Line: Type Fixed/HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7″ CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 2960 (H) × 1688 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC; PoE|Operating temperature range –40 °C to +60 °C|Colour Black
Category Code: FNC
