Description: 1/2.7”5Megapixel progressive CMOS, 2960 × 1668 @20FPS
Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE)
True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
2.8 mm fixed lens (111°)
Up to 30 meters Smart IR Illumination
H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
Built-in MIC, G.711a; G.711Mu; PCM; G.726; G.723 encoding
Micro SD card up to 256GB supported
1/1 audio IO, / Alarm I/O
Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 5.9W max
Smart capabilities: Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDBW3541F-AS-S2

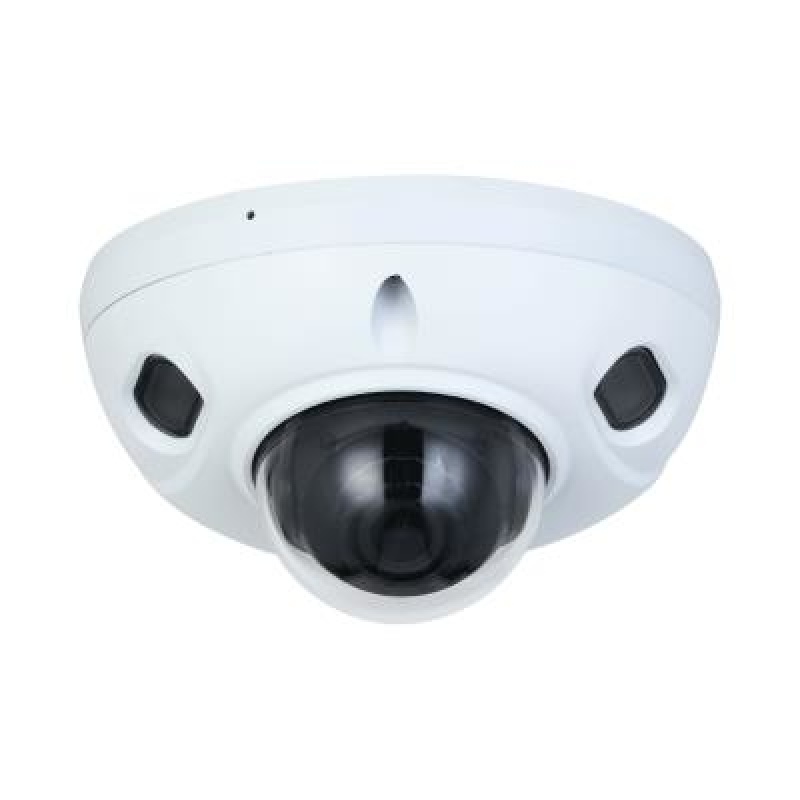

Model: IPC-HDBW3541F-AS-0280B-S2
Camera design: Dome
Network Camera Type: Fixed Dome/HDTV/Megapixel/Outdoor
Pixel Resolution: 5
Focal Length: 2.8 mm
IR Illumination: Yes
Sensor size: 1/2.7”
Min. Illumination: 0.005
Effective pixels: 2960 (H) × 1668 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 256GB
Power supply requirements: 12 VDC/PoE (802.3af)
Power consumption: 5.9
Environment: Outdoor
Operating temperature range: -40°C~+60°C
Colour: White
Dimensions: 64.8 mm × Φ111.0 mm
Units per Shipping Box: 1
Shipping Box Depth: 14
Shipping Box Height: 12
Shipping Box Weight: 0.57
Shipping Box Width: 14
Unit Calculated Volume: 0.002352
Product Net Weight: 0.423
Unit Calculated Weight: 0.57
CnCode: 85258900
Unit Box Width: 0.14
Unit Box Length: 0.14
Unit Box Height: 0.12
Full Description Line: Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Min. Illumination 0.005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 64.8 mm × Φ111.0 mm
Category Code: FNC
