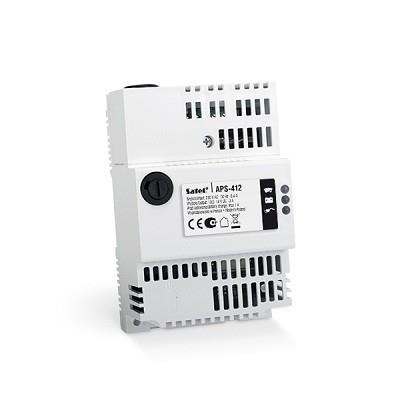

POWER SUPPLY 12VDC 4A DIN/APS-412 SATEL

Description: The switching mode power supply designed to power 12 V devices. It is equipped with a dedicated connector for use with SATEL devices. Its design enables it to be easily installed in the SATEL offered enclosure or on the DIN rail.
– EN50131-6 Grade 2 compliant
– high efficiency 12 V DC switching mode power supply, requiring no mains transformer
– 4 A total output current
– short circuit and overload protection
– designed for use with sealed lead-acid batteries
– optionally selected battery charging current
– battery deep discharge protection
– 3 OC outputs for trouble indication
– optical indication of mains, battery and overload status
– audible trouble signal
– dedicated connector for use with new SATEL modules
– DIN 35 mm rail mountable
Vendor Homepage: http://www.satel.pl/en/produktid/477
Units per Shipping Box: 1
Shipping Box Depth: 14.5
Shipping Box Height: 6.5
Shipping Box Weight: 0.368
Shipping Box Width: 9.5
Unit Calculated Volume: 0.0008954
Product Net Weight: 0.306
Unit Calculated Weight: 0.368
CnCode: 85043180
Unit Box Width: 0.095
Unit Box Length: 0.145
Unit Box Height: 0.065
Category Code: SPS
