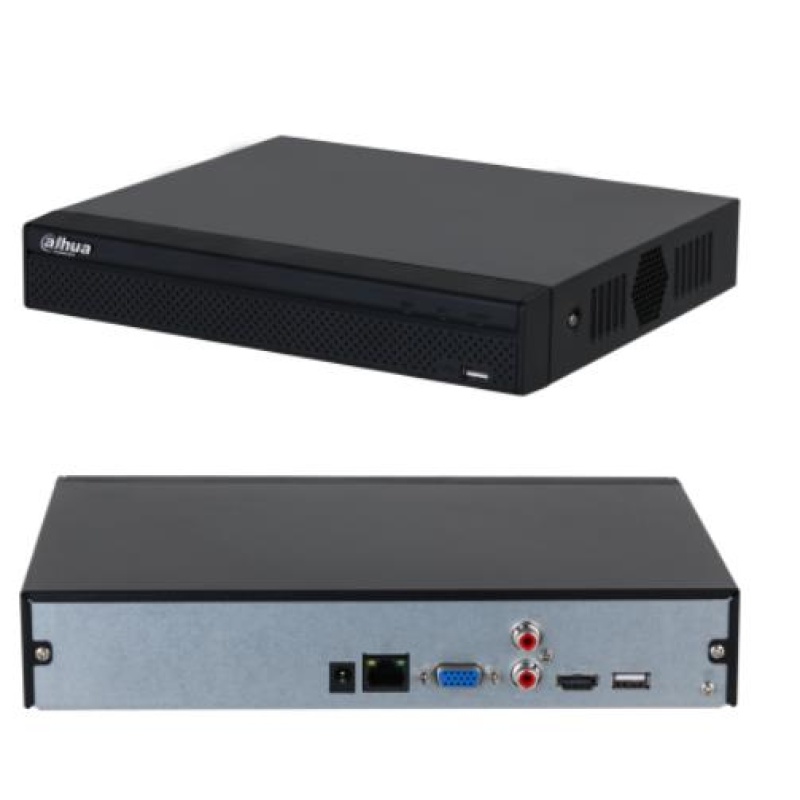

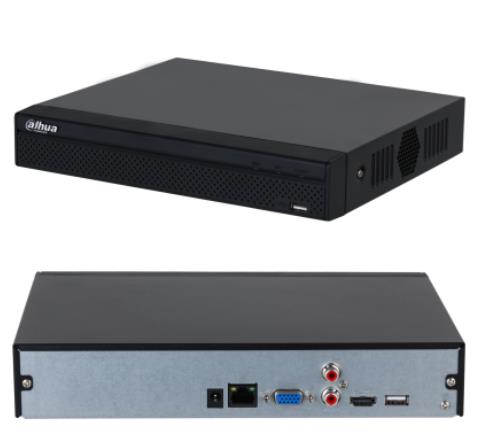

Description: 4CH Compact 1U 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports perimeter protection and SMD Plus.
> Supports one-click arming and disarming.
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2104HS-4KS3
Number of Channels: 4
Number of drives/bays: 1
Desktop/pedestal: Yes
Rack: Yes
CPU: Industrial-grade processor
SATA: Yes
Integrated LAN: 10/100
15pin D-sub: 1
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
Power supply requirements: 12 VDC, 1.5 A
Power consumption: 10
Dimensions: 260.0 × 232.5 × 47.6 mm
Operating temperature range: –10 °C to +55 °C
Units per Shipping Box: 1
Shipping Box Depth: 33
Shipping Box Height: 31
Shipping Box Weight: 1.38
Shipping Box Width: 9
Unit Calculated Volume: 0.009207
Product Net Weight: 0.85
Unit Calculated Weight: 1.38
CnCode: 85219000
Unit Box Width: 0.09
Unit Box Length: 0.33
Unit Box Height: 0.31
Full Description Line: Channels 4|Drives/bays 1|Desktop/pedestal|Rack|CPU Industrial-grade processor|SATA|Integrated LAN 10/100|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 260.0 × 232.5 × 47.6 mm|Temp. range –10 °C to +55 °C
Category Code: NVR
