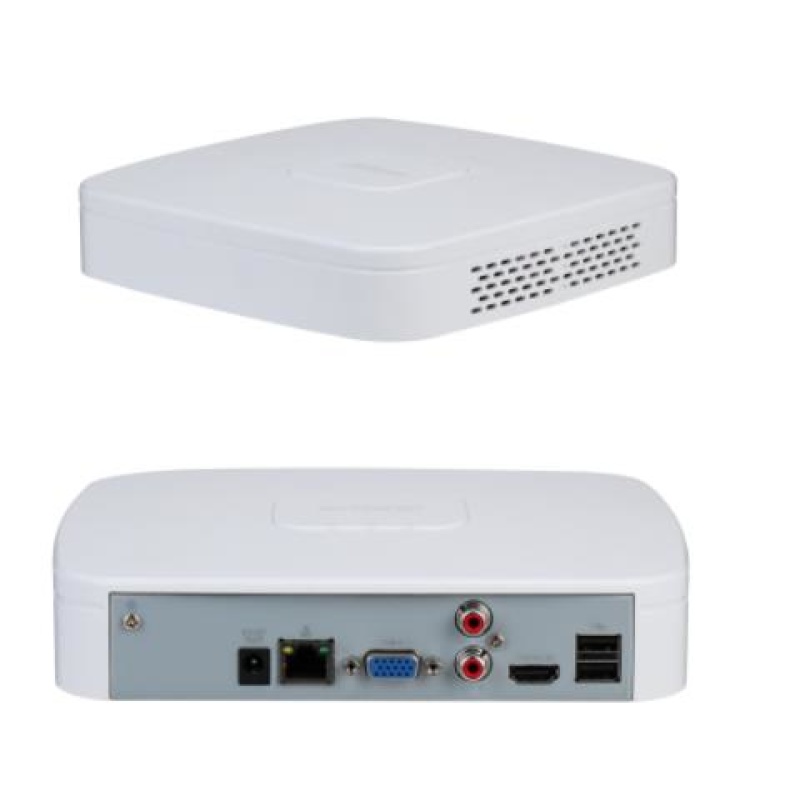

Description: 4CH Smart 1U 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports perimeter protection and SMD Plus.
> Supports one-click arming and disarming
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2104-4KS3
Model: DHI-NVR2104-4KS3
Number of Channels: 4
Desktop/pedestal: Yes
Rack: Yes
CPU: Industrial-grade
Integrated LAN: 10/100
15pin D-sub: 1
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
Power supply requirements: 12 VDC, 1.5 A
Power consumption: 10
Dimensions: 204.6 × 206.4 × 45.6 mm
Operating temperature range: –10 °C to +55 °C
Colour: White
Units per Shipping Box: 1
Shipping Box Depth: 36
Shipping Box Height: 26
Shipping Box Weight: 1.1
Shipping Box Width: 9.5
Unit Calculated Volume: 0.008892
Product Net Weight: 0.45
Unit Calculated Weight: 1.1
CnCode: 85219000
Unit Box Width: 0.095
Unit Box Length: 0.36
Unit Box Height: 0.26
Full Description Line: Channels 4|Desktop/pedestal|Rack|CPU Industrial-grade|Integrated LAN 10/100|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 204.6 × 206.4 × 45.6 mm|Temp. range –10 °C to +55 °C|Colour White
Category Code: NVR
