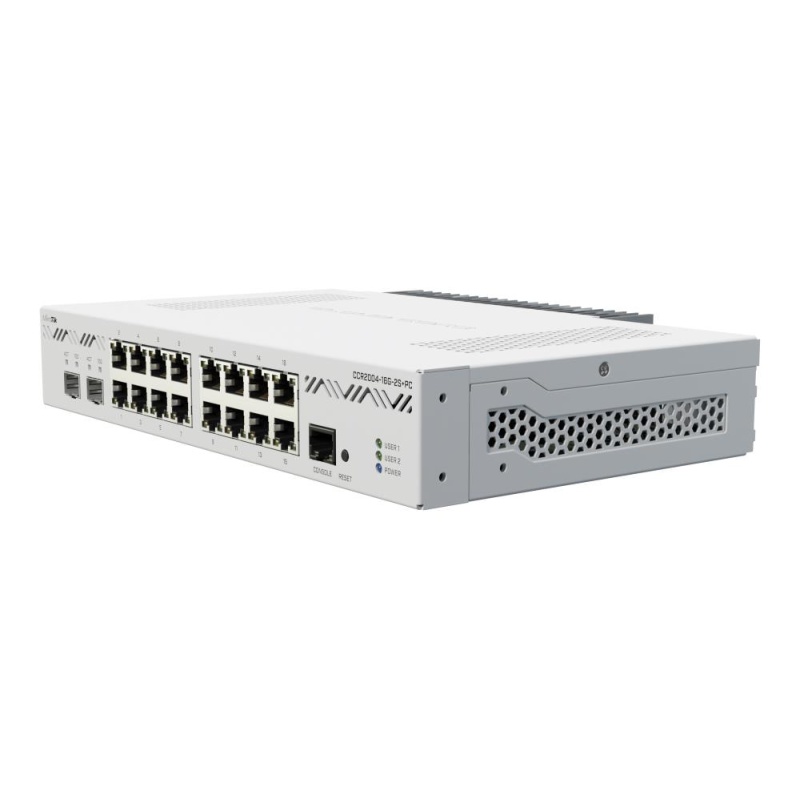

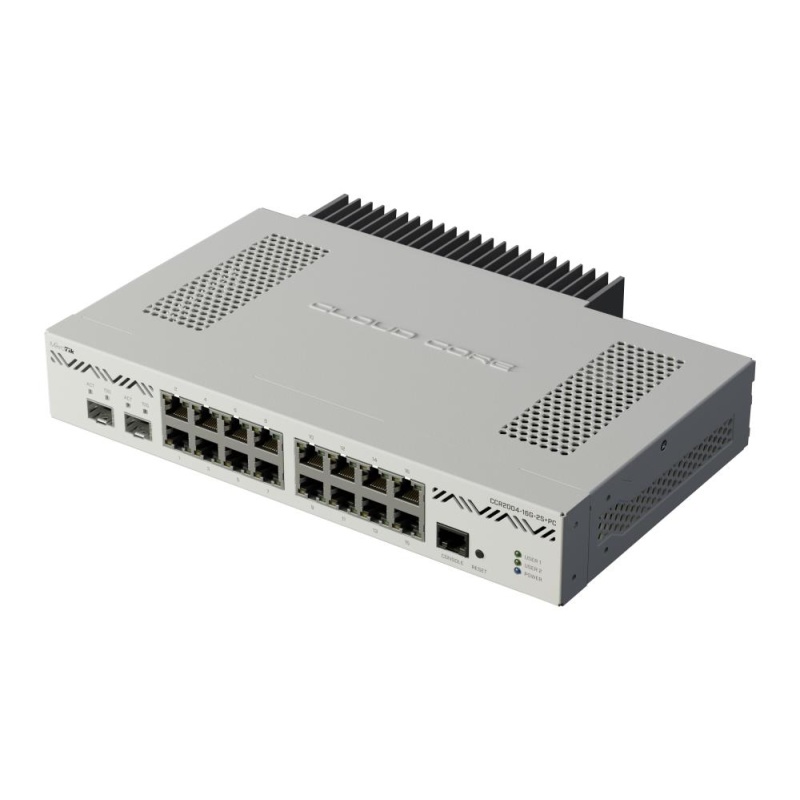

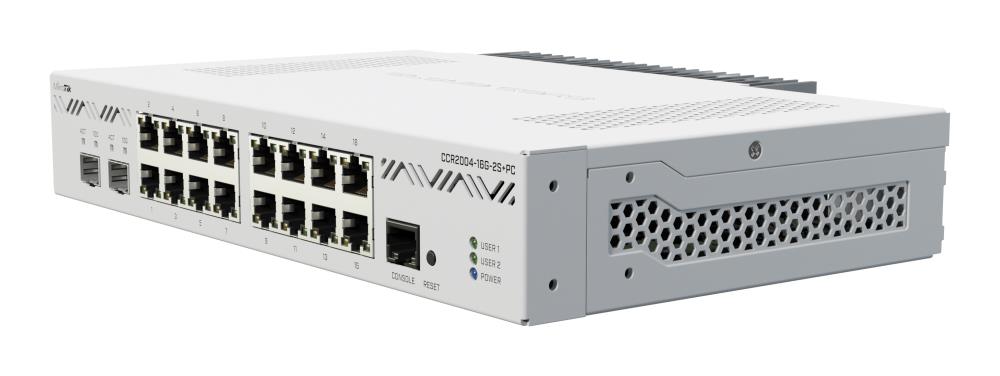

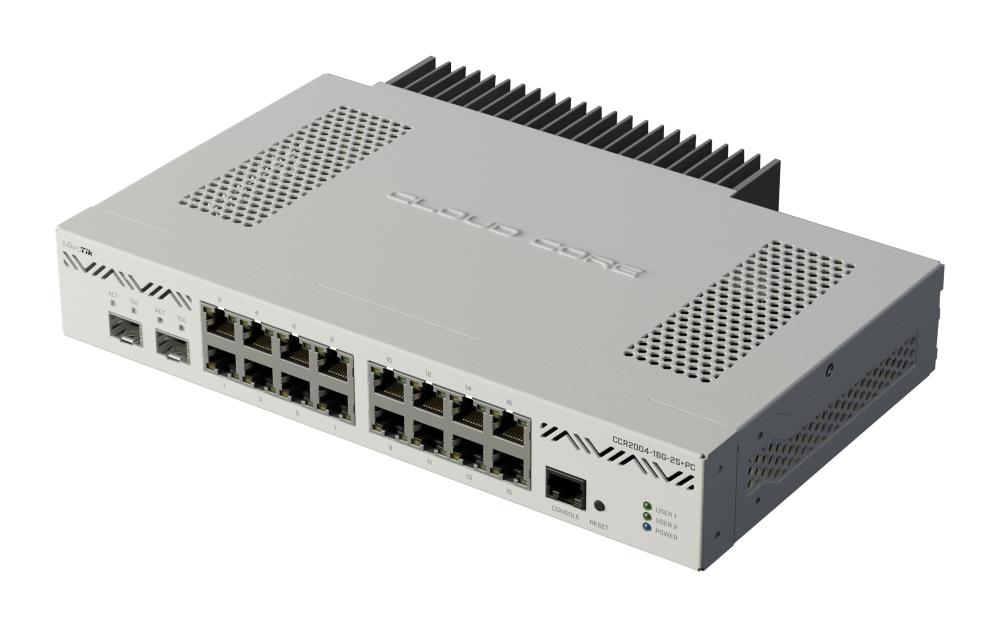

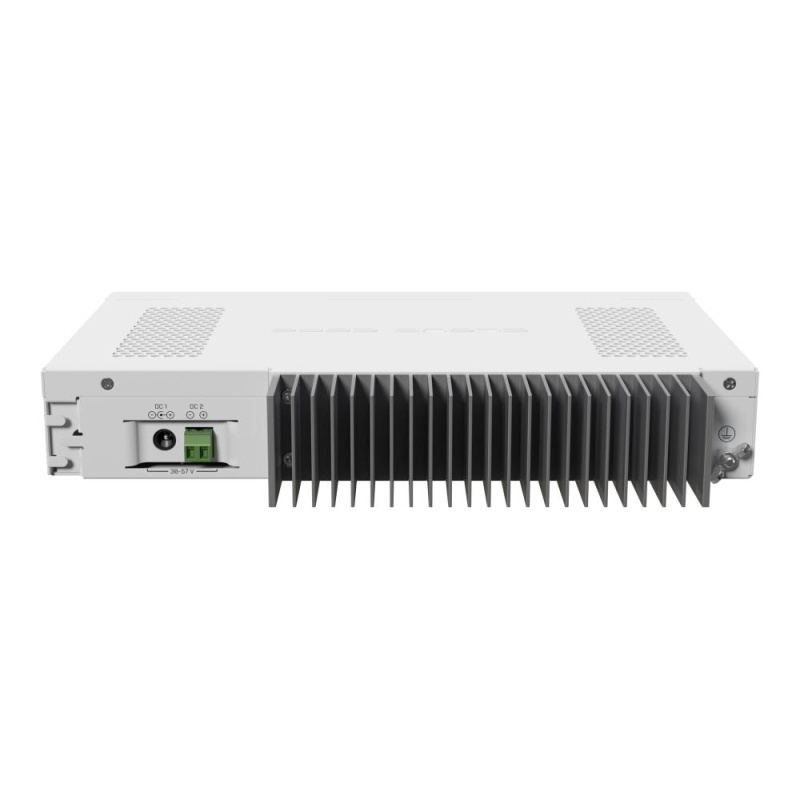

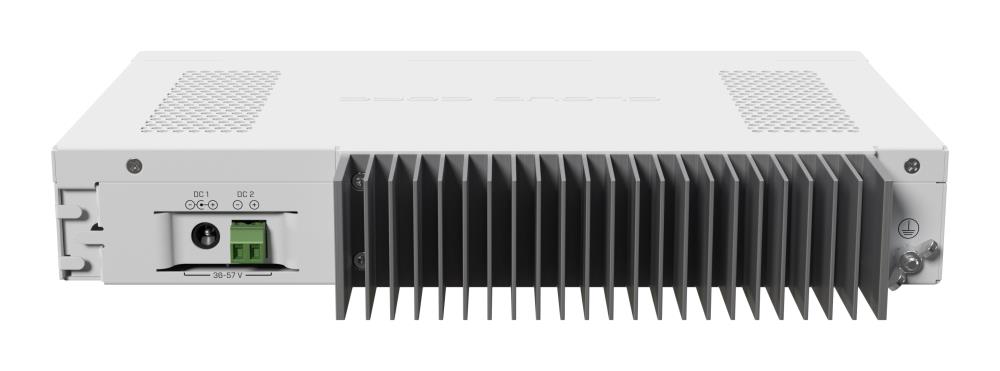

Description: CCR2004-16G-2S+PC (Passive Cooling)
Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!

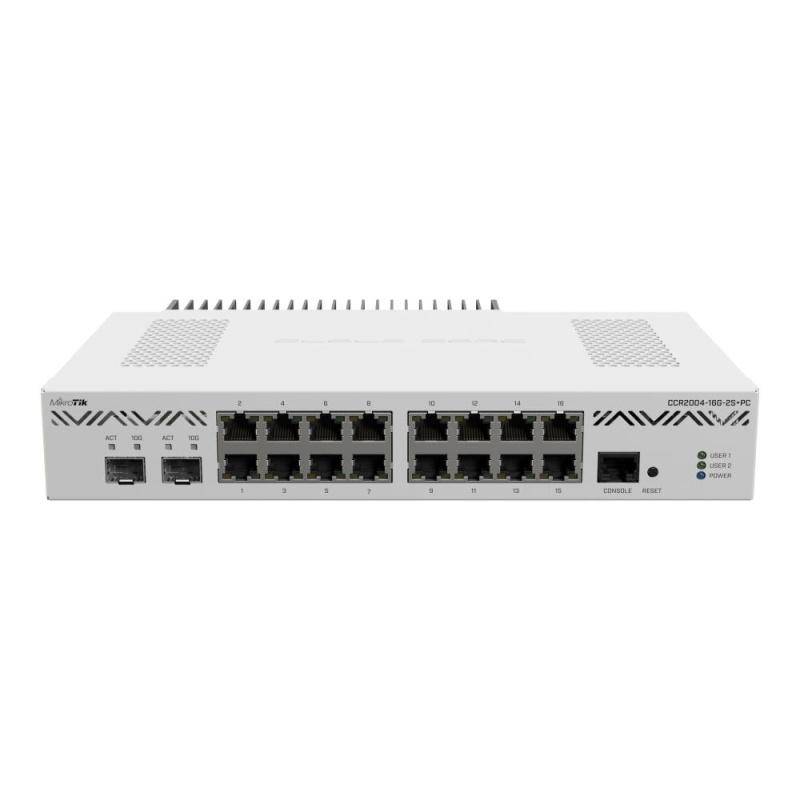

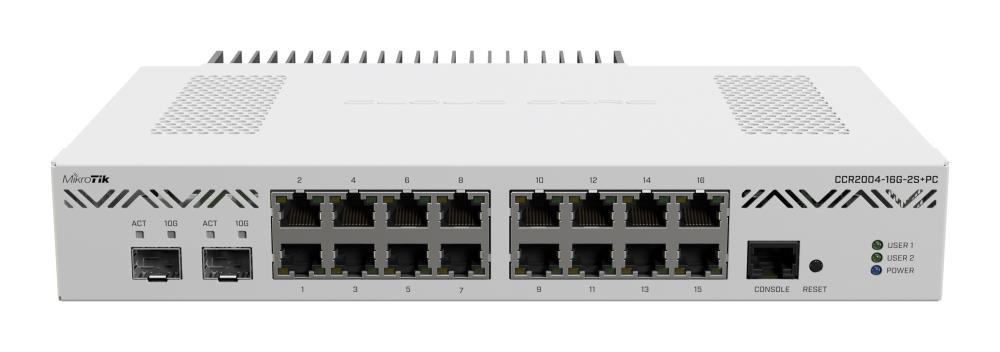

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.
Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage – a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
So as you can see – no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009.
The best part? This brand new CCR is among the most affordable options out there – not only within the CCR series, but on the market in general. One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.
With the new CCR2004, you can take your office network to the next level. Without breaking the bank.
Vendor Homepage: mikrotik.com/product/ccr2004_16g_2s_pc
Product model code: CCR2004-16G-2S+PC
Network Device Type: Router
10/100/1000M: 16
SPF+: 2
Memory (RAM): 4GB
Flash memory capacity: 128MB
Power supply requirements: 100-240 V
Included Accessories: RouterOS licence 6, Rack mount Ears, Power Adapter
Power consumption: 36
Operating temperature range: -20°C to +60°C
Dimensions: 443 x 210 x 44 mm
Units per Shipping Box: 1
Shipping Box Depth: 38.5
Shipping Box Height: 5.5
Shipping Box Weight: 1.46
Shipping Box Width: 21
Unit Calculated Volume: 0.004447
Product Net Weight: 1.2
Unit Calculated Weight: 1.46
CnCode: 85176200
Unit Box Width: 0.21
Unit Box Length: 0.385
Unit Box Height: 0.055
Full Description Line: CCR2004-16G-2S+PC|Network Device Type Router|16×10/100/1000M|2xSPF+|Memory (RAM) 4GB|Flash memory capacity 128MB|Power supply requirements 100-240 V|Included Accessories RouterOS licence 6, Rack mount Ears, Power Adapter|Power consumption 36 Watts|Operating temperature range -20°C to +60°C|Dimensions 443 x 210 x 44 mm
Category Code: ROU
