Description: Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
Up to 1.5 Gbps routing with IDS/IPS
(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN
USB-C powered (adapter included)
Managed with UniFi Network 8.1.113 and later
Vendor Homepage: eu.store.ui.com/eu/en/products/uxg-max

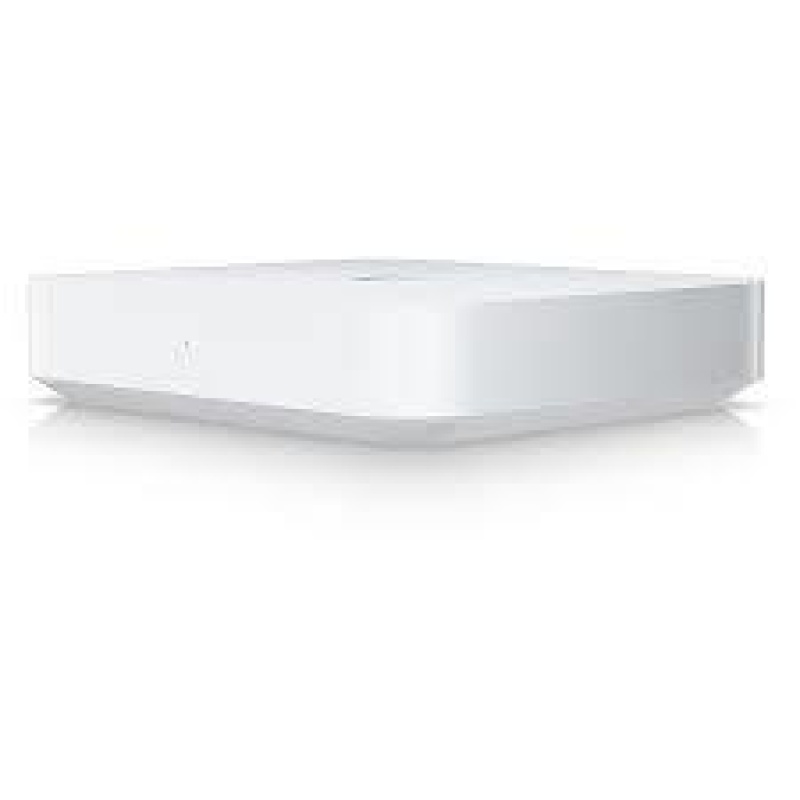

Model: Gateway Max
Product model code: UXG-MAX
10/100/1000M: 4
2.5GbE: 1
CPU: Quad-core ARM Cortex-A53 at 1.5 GHz
Memory (RAM): 2GB
Power supply requirements: USB type C (5V/3A)
Dimensions: 141.8 x 127.6 x 30 mm
Units per Shipping Box: 10
Shipping Box Depth: 45
Shipping Box Height: 23
Shipping Box Weight: 9.4
Shipping Box Width: 37
Unit Calculated Volume: 0.00383
Product Net Weight: 0.52
Unit Calculated Weight: 0.94
CnCode: 85176200
Unit Box Width: 0.16
Unit Box Length: 0.175
Unit Box Height: 0.08
Full Description Line: UXG-MAX|4×10/100/1000M|1×2.5GbE|Memory (RAM) 2GB|Power supply requirements USB type C (5V/3A)|Dimensions 141.8 x 127.6 x 30 mm
Category Code: ROU
