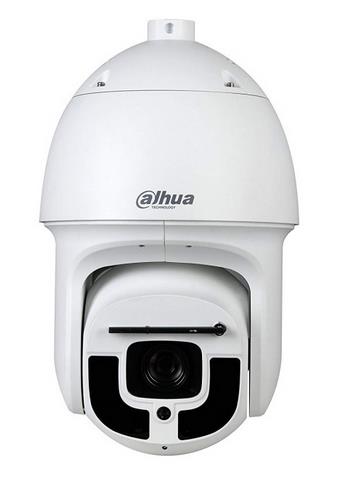

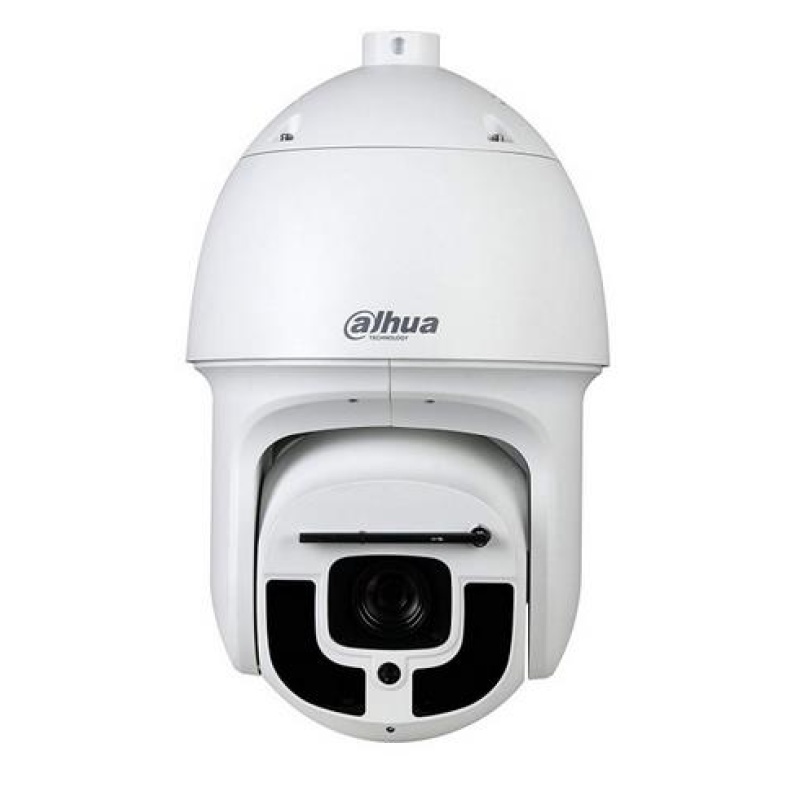

Description: 8MP 40x Starlight IR PTZ AI Network Camera
> 1/1.8″ 8Megapixel STARVIS™ CMOS
> Powerful 40x optical zoom
> Starlight technology
> Perimeter protection
> Metadata
> Face detection
> Auto-tracking
> Smart wiper
> IP67
1/1.8” STARVIS™ CMOS, 3840×2160 @30FPS max, 4K real time
Minimum illumination: Color: 0.005Lux @ F1.4; B/W: 0.0005 Lux @ F1.4; 0 Lux@F1.4 (illuminator on)
True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, Defog, EIS, ROI
IR distance up to 500m
5.6mm~223mm (40x Optical zoom) (63.9° ~ 2.0°)
Pan: 0° ~ 360° endless; Tilt: -30° ~ 90°,auto flip 180°
Preset Speed: Pan: 240° /s; Tilt: 120° /s, Presets: 300
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG (Sub Stream 1) encoding, ONVIF Profile S&G&T; API
Intelligent analytics available: Object abandoned; object missing, Auto Tracking, Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
Built-in SD card slot, Max 256GB
1/1 Audio channel In/Out, 7/2 Alarm In/Out, RS-485, Analog Output
IP67, metal case, -40°C~+70°C outdoor/indoor use
Power: DC 36V/2.23A (±25%), Hi-PoE, 48W max
Free IP monitoring software available
Wall bracket and PSU included
Vendor Homepage: www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizMind-Series/SD8A/8MP/SD8A840-HNF-PA
Network Camera Type: Fixed Dome/HDTV/Megapixel/Outdoor/PTZ
Pixel Resolution: 8
Focal Length: 5.6mm~223mm
Optical Zoom: 40 x
IR Illumination: Yes
Sensor size: 1/1.8″
Min. Illumination: 0.0005
Electronic Shutter Speed: 1/1 s–1/30,000 s
Alarm In: 7
Alarm Out: 2
Audio-In: 1
Audio-Out: 1
RJ45: 1
RS-485: 1
Supports card capacities up to: 256GB
Power options: PoE
Power supply requirements: 36 VDC/2.23A±25%
Power consumption: 48
Environment: Outdoor
Operating temperature range: –40 °C to +70 °C
Dimensions: 415.6 mm × Φ26 2 mm
Units per Shipping Box: 1
Shipping Box Depth: 36.5
Shipping Box Height: 59.5
Shipping Box Weight: 13.1
Shipping Box Width: 35
Unit Calculated Volume: 0.07601
Product Net Weight: 10
Unit Calculated Weight: 13.1
CnCode: 85258900
Unit Box Width: 0.35
Unit Box Length: 0.365
Unit Box Height: 0.595
Full Description Line: Type Fixed Dome/HDTV/Megapixel/Outdoor/PTZ|Pixel Resolution 8 Mega Pixel|Focal Length 5.6mm~223mm|Optical Zoom 40 x|IR Illumination|Sensor size 1/1.8″|Min. Illumination 0.0005 Lux|Electronic Shutter Speed 1/1 s–1/30,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xRS-485|7xAlarm In|2xAlarm Out|Supports card capacities up to 256GB|Power options PoE|Power supply requirements 36 VDC/2.23A±25%|Environment Outdoor|Operating temperature range –40 °C to +70 °C|Dimensions 415.6 mm × Φ26 2 mm
Category Code: FNC
