Description: > 8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-HFW3849T1-AS-PV=S5

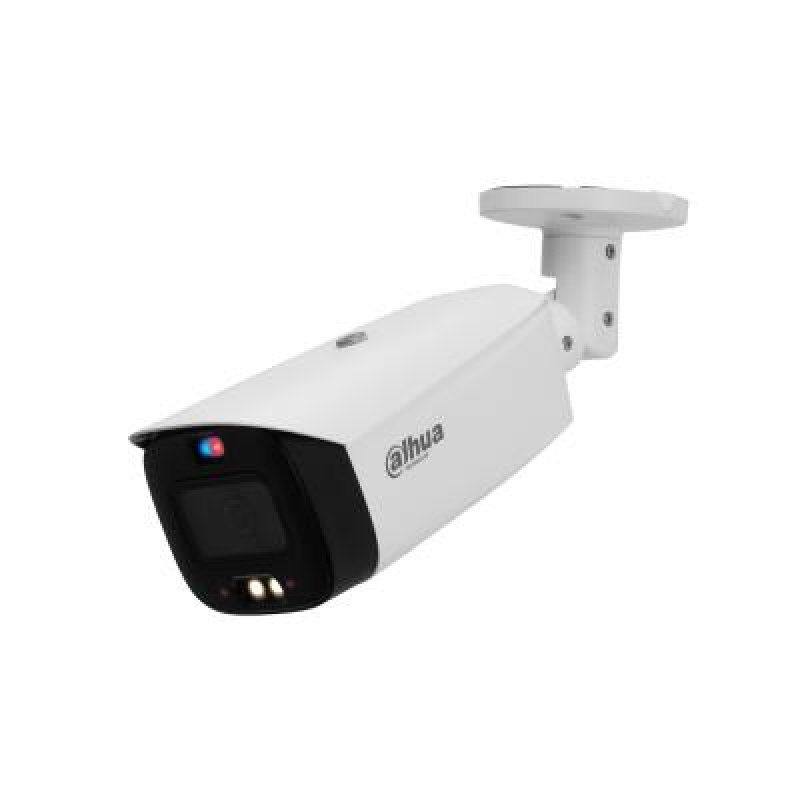

Model: HFW3849T1-ASPV0280BS5
Camera design: Bullet
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 8
IR Illumination: Yes
Sensor size: 1/2.7
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0004
Effective pixels: 3840 (H) × 2160 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE (802.3af)
Power consumption: 5.8
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Dimensions: 288.4 × 94.4 × 84.7 mm
Units per Shipping Box: 8
Shipping Box Depth: 57.5
Shipping Box Height: 32
Shipping Box Weight: 11.4
Shipping Box Width: 35.5
Unit Calculated Volume: 0.008165
Product Net Weight: 1
Unit Calculated Weight: 1.43
CnCode: 85258900
Unit Box Width: 0.15
Unit Box Length: 0.345
Unit Box Height: 0.14
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0004 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions 288.4 × 94.4 × 84.7 mm
Category Code: FNC
