Description: > 6-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 ×1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-HFW3649T1-AS-PV-PRO

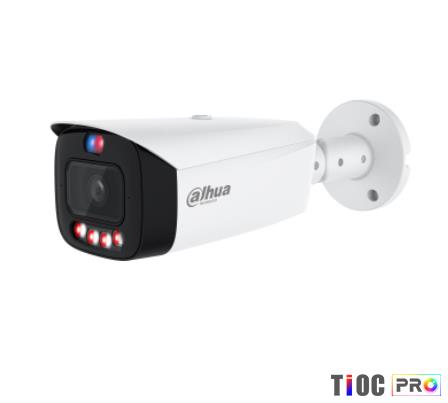

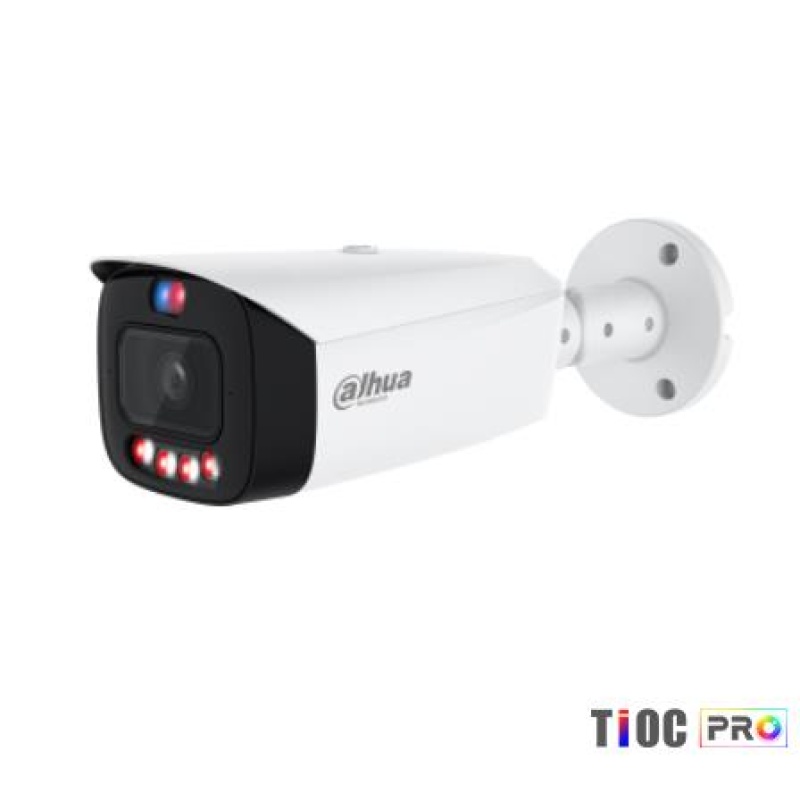

Model: HFW3649T1-ASPV0280B-PRO
Camera design: Bullet
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 6
IR Illumination: Yes
Sensor size: 1/1.8″
Lens Mount: M16
Min. Illumination: 0.0005
Effective pixels: 3288(H) × 1850 (V)
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 512GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE+ (802.3at)
Power consumption: 6.2
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Dimensions: 288.4 × 94.4 × 84.7 mm
Units per Shipping Box: 1
Shipping Box Depth: 34
Shipping Box Height: 14
Shipping Box Weight: 1.49
Shipping Box Width: 15
Unit Calculated Volume: 0.00714
Product Net Weight: 1
Unit Calculated Weight: 1.49
CnCode: 85258900
Unit Box Width: 0.15
Unit Box Length: 0.34
Unit Box Height: 0.14
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 6 Mega Pixel|IR Illumination|Sensor size 1/1.8″|Lens Mount M16|Min. Illumination 0.0005 Lux|Effective pixels 3288(H) × 1850 (V)|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE+ (802.3at)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions 288.4 × 94.4 × 84.7 mm
Category Code: FNC
