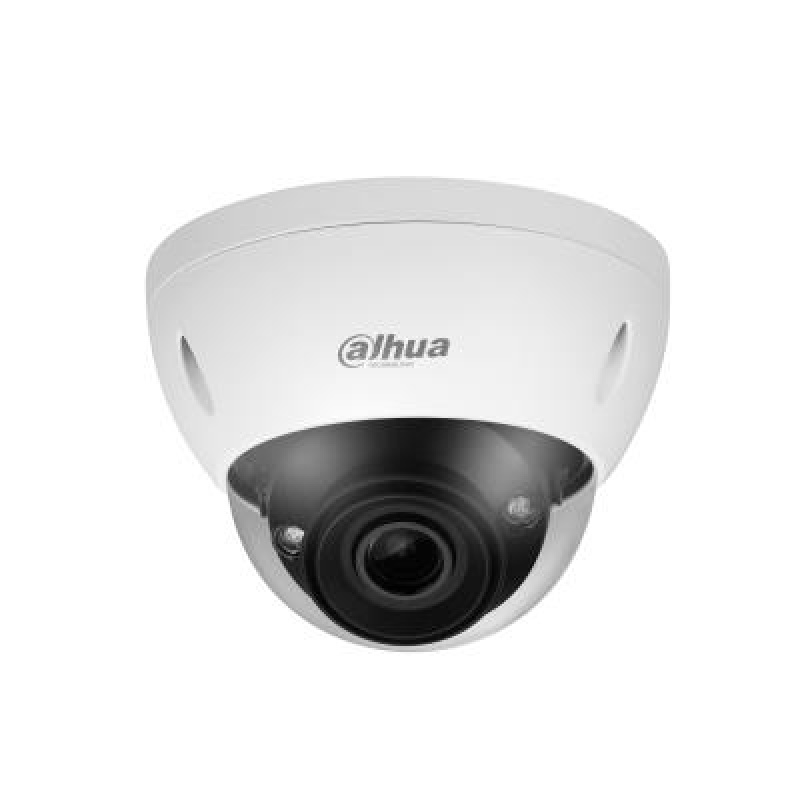

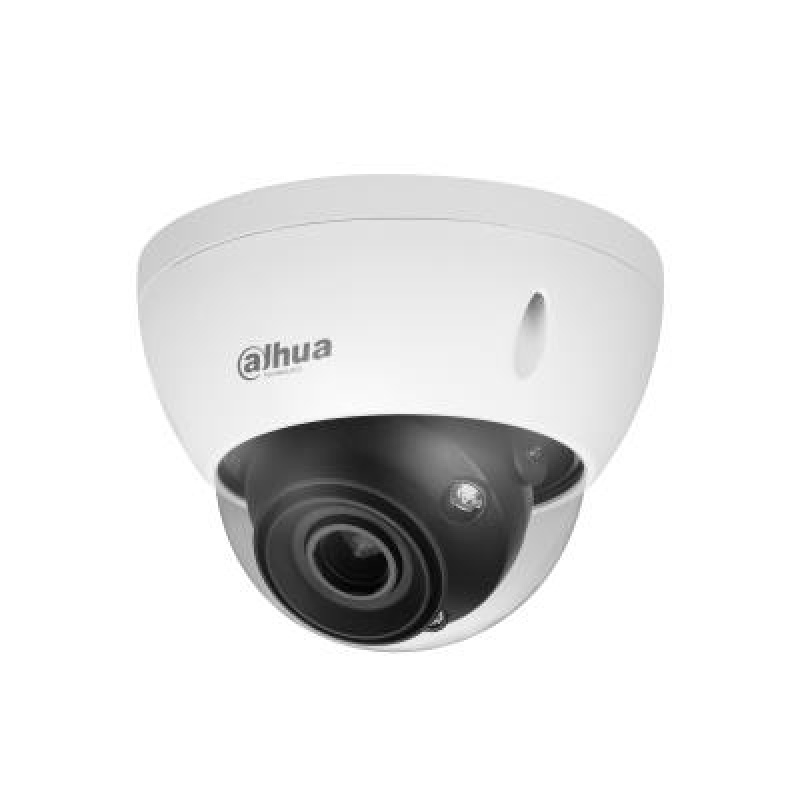

Description: 5MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
> Focal Length 2.7 mm–13.5 mm, Field of View H: 114°–32°
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDBW5541E-ZE=S3
Model: IPC-HDBW5541E-ZE-27135-S3
Network Camera Type: Fixed Dome/HDTV/Megapixel/Outdoor
Pixel Resolution: 5
Focal Length: 2.7 mm–13.5 mm
IR Illumination: Yes
Sensor size: 1/2.7″ CMOS
Microphone: Built-in
Min. Illumination: 0.0005
Effective pixels: 2960 (H) × 1668 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
MicroSD Card Slot: 1
RJ45: 1
Supports card capacities up to: 1TB
Power supply requirements: 12 VDC/24 VAC/PoE (802.3af)/ePoE
Environment: Outdoor
Operating temperature range: –30 °C to +60 °C
Colour: White
Dimensions: Φ159.1 mm × 118.1 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.007447
Product Net Weight: 0.91
Unit Calculated Weight: 1.22
CnCode: 85258900
Full Description Line: Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.7″ CMOS|Microphone Built-in|Min. Illumination 0.0005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 1TB|Power supply requirements 12 VDC/24 VAC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions Φ159.1 mm × 118.1 mm
Category Code: FNC
