Description: IPC-HFW5541T-ASE-S3

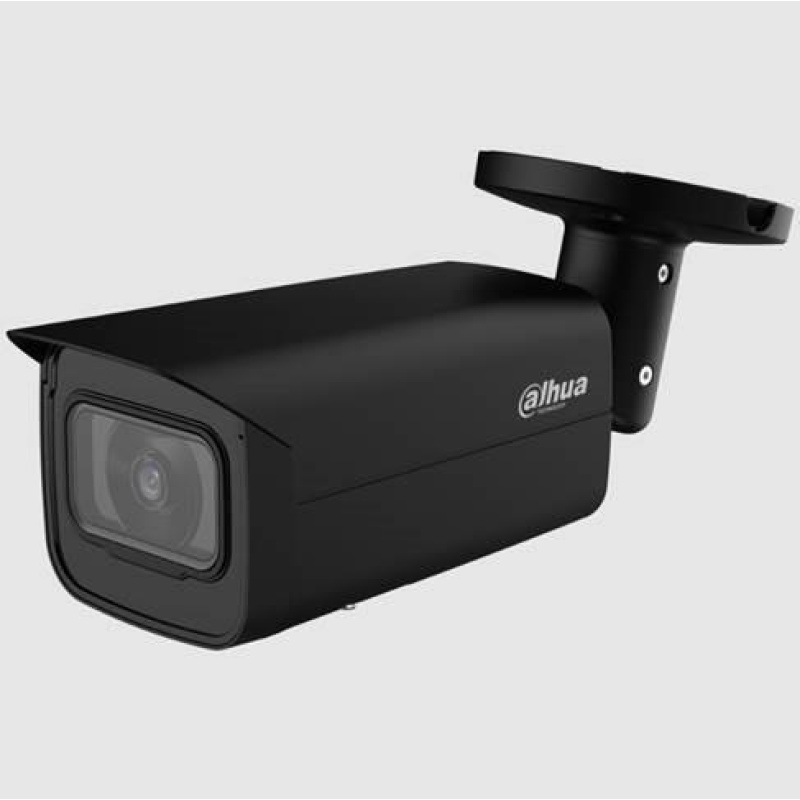

5MP IR Fixed-focal Bullet WizMind Network Camera
* The parameters and datasheets below can only be applied to 5541-ASE-S3 series.
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960×1668) @25/30fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541T-ASE-S3=S3
Model: IPC-HFW5541T-ASE-0360B-S3-B
Network Camera Type: Fixed/Outdoor
Pixel Resolution: 5
Focal Length: 2.8 mm; 3.6 mm; 6 mm; 8mm
IR Illumination: Yes
Sensor size: 1/2.7″ CMOS
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0005
Effective pixels: 2960×1668
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Power options: 12V
Power supply requirements: 12 VDC/PoE (802.3af)/ePoE
Power consumption: 4.1
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Dimensions: 244.1 × 79.0 × 75.9 mm
Units per Shipping Box: 1
Shipping Box Depth: 30
Shipping Box Height: 11
Shipping Box Weight: 1.21
Shipping Box Width: 12
Unit Calculated Volume: 0.00396
Product Net Weight: 0.82
Unit Calculated Weight: 1.21
CnCode: 85258900
Unit Box Width: 0.12
Unit Box Length: 0.3
Unit Box Height: 0.11
Full Description Line: Type Fixed/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm; 3.6 mm; 6 mm; 8mm|IR Illumination|Sensor size 1/2.7″ CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 2960×1668|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|Power options 12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions 244.1 × 79.0 × 75.9 mm
Category Code: FNC
