Description: IPC-HDBW5442E-ZE2712-S3-B

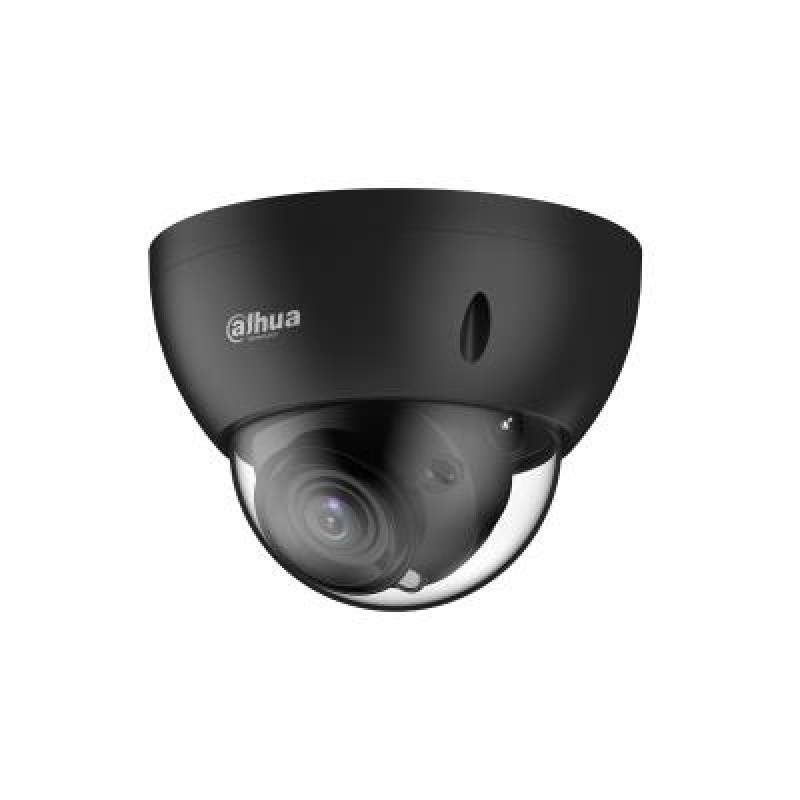

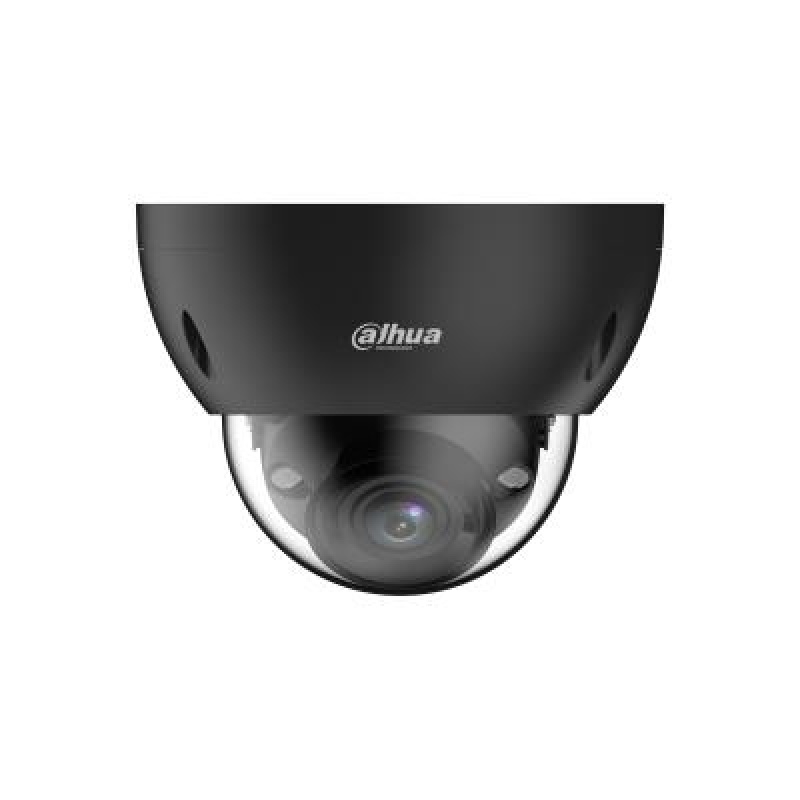

4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0
Focal Length: 2.7 mm–12 mm, Field of View: H: 115°–47°
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HDBW5442E-ZE-S3=S3
Model: IPC-HDBW5442E-ZE2712-S3-B
Camera design: Dome
Network Camera Type: Fixed Dome/HDTV/Megapixel/Outdoor
Pixel Resolution: 4
Focal Length: 2.7 mm–12 mm
IR Illumination: Yes
Sensor size: 1/1.8″ CMOS
Microphone: Built-in
Min. Illumination: 0.0004
Effective pixels: 2688 (H) × 1520 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
MicroSD Card Slot: 1
RJ45: 1
Supports card capacities up to: 1TB
Power supply requirements: 12 VDC/24 VAC/PoE (802.3af)/ePoE
Environment: Outdoor
Operating temperature range: –30 °C to +60 °C
Colour: Black
Dimensions: Φ159.1 mm × 118.1 mm
Units per Shipping Box: 1
Shipping Box Depth: 18.5
Shipping Box Height: 14.5
Shipping Box Weight: 1.25
Shipping Box Width: 18.5
Unit Calculated Volume: 0.004963
Product Net Weight: 0.91
Unit Calculated Weight: 1.25
CnCode: 85258900
Unit Box Width: 0.185
Unit Box Length: 0.185
Unit Box Height: 0.145
Full Description Line: Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–12 mm|IR Illumination|Sensor size 1/1.8″ CMOS|Microphone Built-in|Min. Illumination 0.0004 Lux|Effective pixels 2688 (H) × 1520 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 1TB|Power supply requirements 12 VDC/24 VAC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour Black|Dimensions Φ159.1 mm × 118.1 mm
Category Code: FNC
