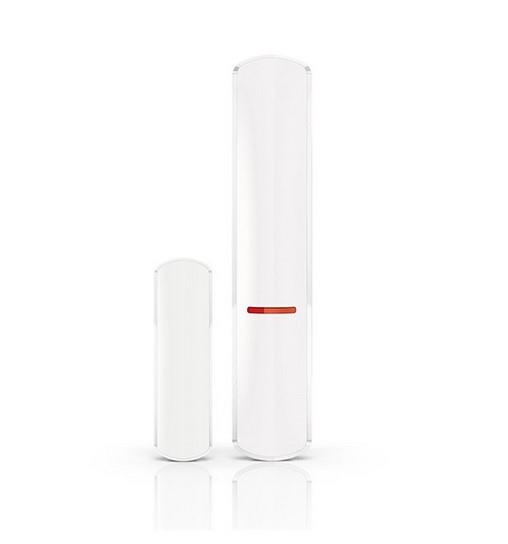

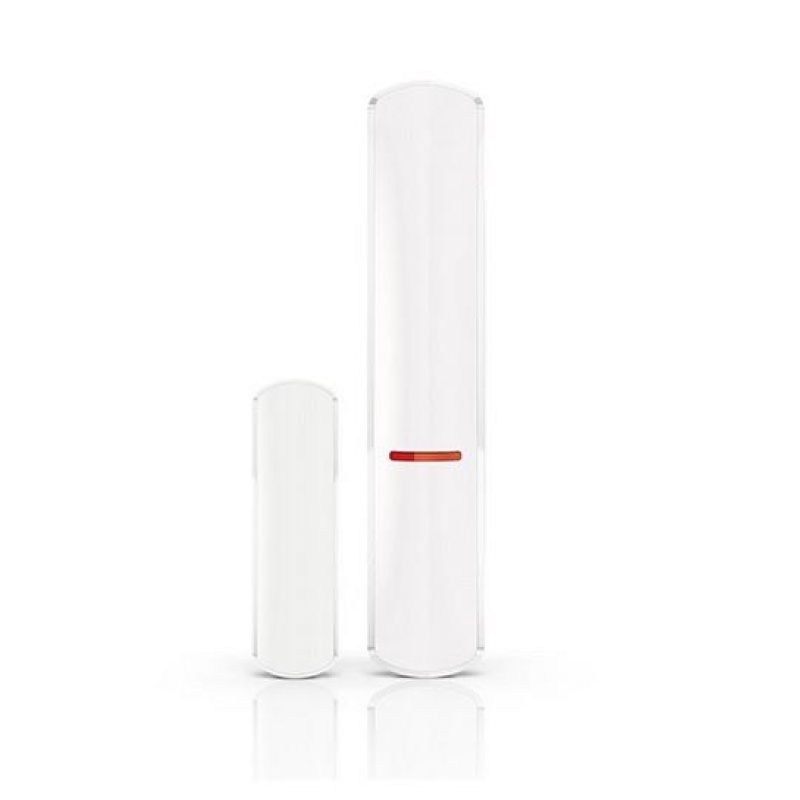

Description: XD-2 is a multipurpose wired detector, which can operate with any alarm control panel. XD-2 can work as: magnetic contact, shock detector, shock detector and magnetic contact, and water flood detector.
mode of operation: magnetic contact, shock detector, shock detector and magnetic contact, water flood detector detection of flooding in rooms with plumbing (input for connecting external flood probe FPX-1, optional).
LED indicator
remote enabling/disabling of LED indicator
supply voltage control
tamper protection against enclosure opening and removal from mounting surface
2 magnets included (for surface and flush mounting)
Vendor Homepage: www.satel.eu/en/produktid/1257
Detector Type: Perimeter protection
Alarm output: 1
Operating temperature range: -10°C…+55°C
Power supply requirements: 12 V DC
Current drain: 12.5
Colour: White
Dimensions: 20 x 102 x 23 mm
Units per Shipping Box: 1
Shipping Box Depth: 12
Shipping Box Height: 4
Shipping Box Weight: 0.06
Shipping Box Width: 5
Unit Calculated Volume: 0.00024
Product Net Weight: 0.046
Unit Calculated Weight: 0.06
CnCode: 85311030
Unit Box Width: 0.05
Unit Box Length: 0.12
Unit Box Height: 0.04
Full Description Line: Detector Type Perimeter protection|Alarm output 1|Operating temperature range -10°C…+55°C|Power supply requirements 12 V DC|Current drain 12.5 mA|Colour White|Dimensions 20 x 102 x 23 mm
Category Code: MDE
