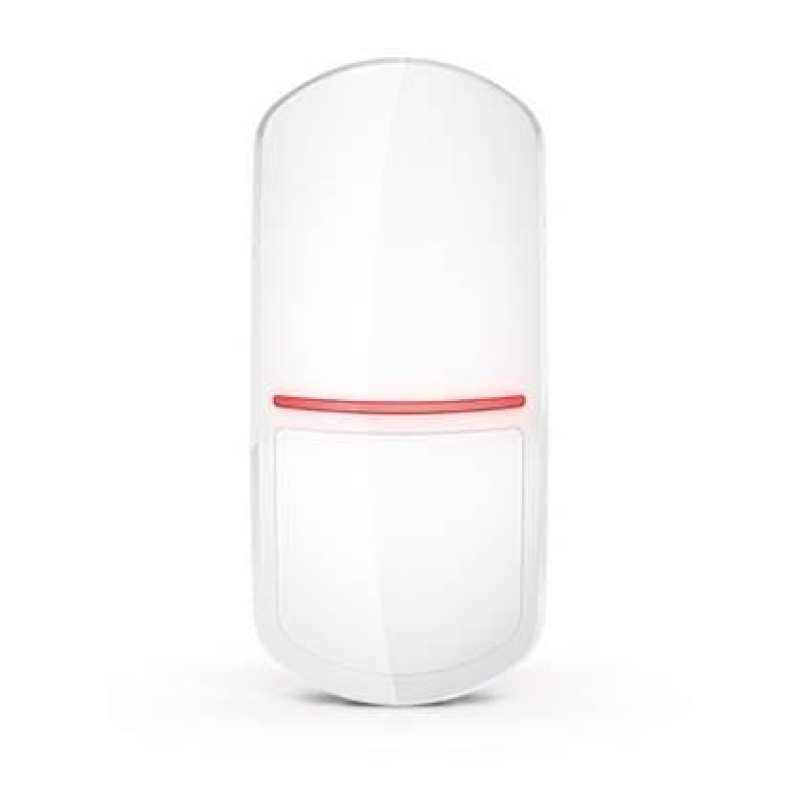

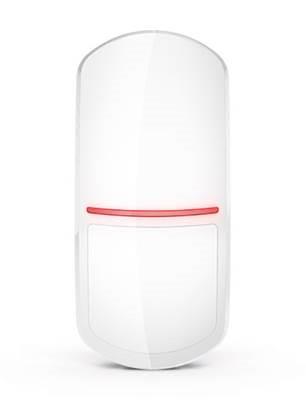

Description: The APD-200 detector is designed for operation as part of the ABAX 2/ABAX two-way wireless system. It meets the EN 50131 requirements for Grade 2.
Effective motion detection is achieved thanks to the double pyro-element, digital detection algorithm and dynamic compensation of temperature in protected premises. APD-200 has a state-of-the-art lens with unique beam distribution. It can be replaced with the curtain lens (CT-CL) or long-range lens (LR-CL).
Vendor Homepage: www.satel.pl/en/product/10102/APD-200,Wireless-PIR-motion-detector
Detector Type: Motion
Detection technology: PIR
Detecting area: 15 m x 24 m, 90°
Environment: Indoor
Communication: Wireless
Operating temperature range: -10°C…+55°C
Dimensions: 62 x 137 x 42 mm
Units per Shipping Box: 1
Shipping Box Depth: 18.5
Shipping Box Height: 5
Shipping Box Weight: 0.19
Shipping Box Width: 7
Unit Calculated Volume: 0.0006475
Product Net Weight: 0.132
Unit Calculated Weight: 0.19
CnCode: 85311030
Unit Box Width: 0.07
Unit Box Length: 0.185
Unit Box Height: 0.05
Full Description Line: Detector Type Motion|Detection technology PIR|Detecting area 15 m x 24 m, 90°|Wireless|Operating temperature range -10°C…+55°C|Dimensions 62 x 137 x 42 mm
Category Code: MDE
