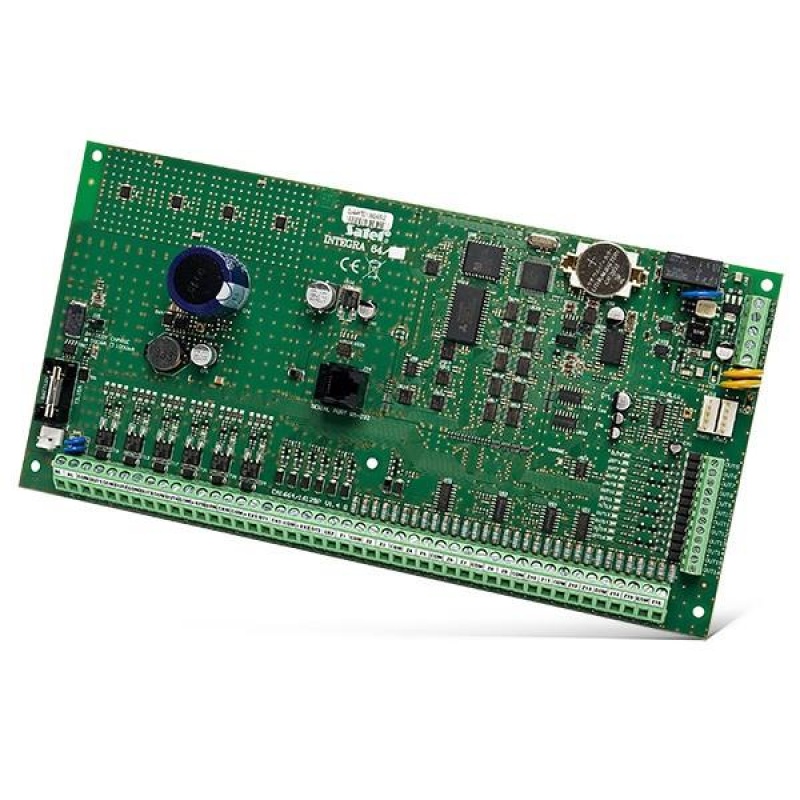

CONTROL PANEL ADVANCED/16-64ZONES INTEGRA64 SATEL

Description: – 16 up to 64 zones
– 32 partitions, 8 objects
– 16 up to 64 programmable outputs
– keypads and expansion modules buses
– built-in telephone dialer with monitoring, voice messaging and remote control features
– access control and home automation features
– system operation with LCD keypads, partition keypads, keyfobs and proximity cards or remotely with mobile phone or PC
– 64 independent timers for automatic control
– event log with 6143 entries and event printing feature
– 192+8+1 users
– RS-232 port – RJ type socket
– flash firmware upgrade with a PC
– built-in 3A switching mode backup power supply with battery charging and diagnostic features
Vendor Homepage: http://www.satel.pl/en/product/85/INTEGRA%2064,Advanced-control-panel-with-16-up-to-64-zones
Max. wireless zones: 48
Max. number of outputs: 64
Max. number of zones: 64
Dimensions: 23.5 x 14 x 5.5cm
Units per Shipping Box: 1
Shipping Box Depth: 29
Shipping Box Height: 5.5
Shipping Box Weight: 0.43
Shipping Box Width: 14.5
Unit Calculated Volume: 0.002313
Product Net Weight: 0.22
Unit Calculated Weight: 0.43
CnCode: 85311030
Unit Box Width: 0.145
Unit Box Length: 0.29
Unit Box Height: 0.055
Full Description Line: Max. wireless zones 48|Max. number of outputs 64|Max. number of zones 64
Category Code: CNP
