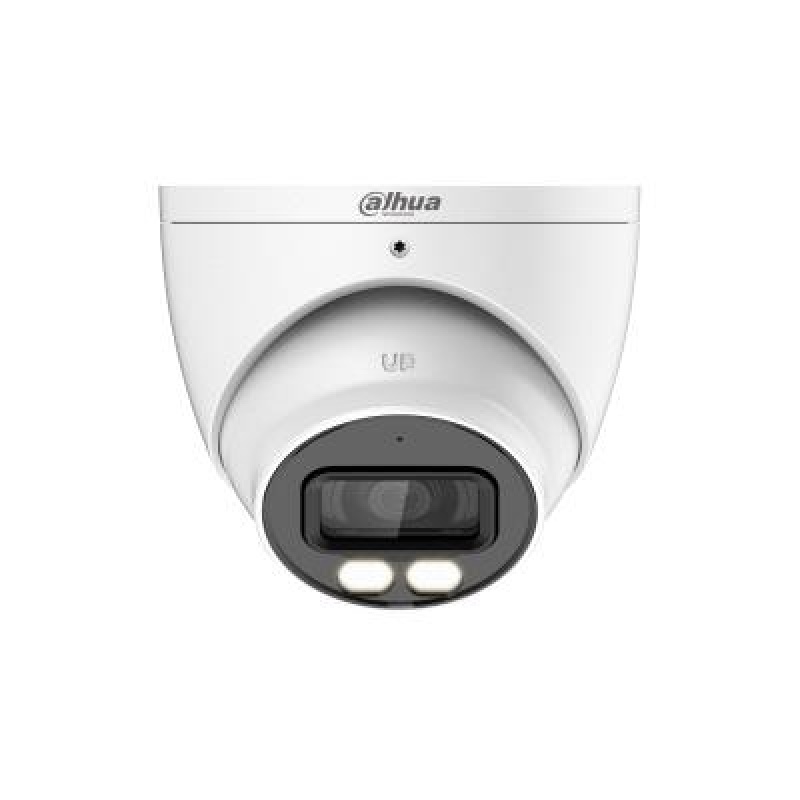

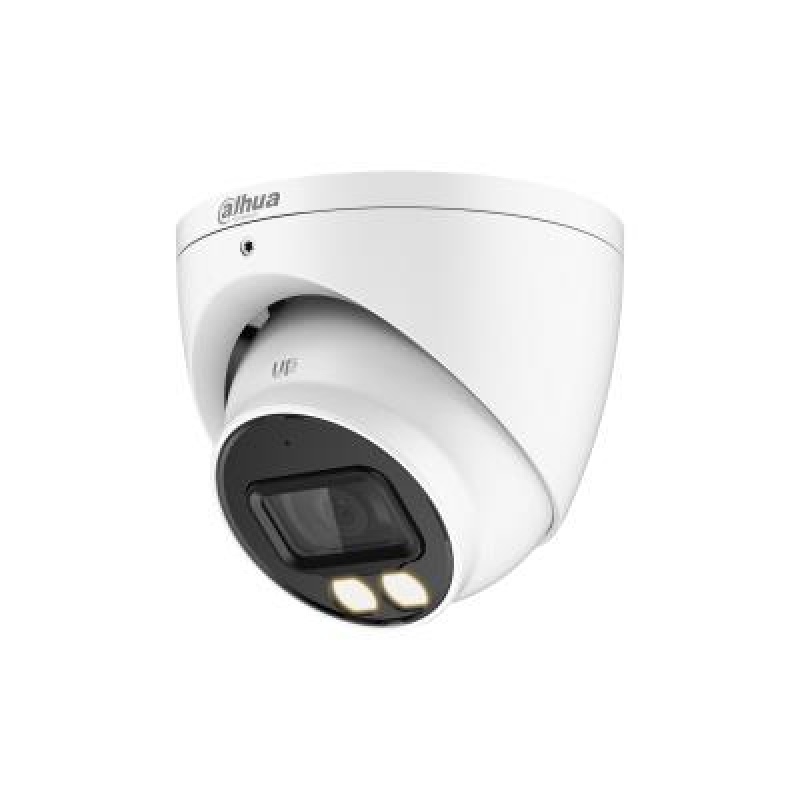

Description: „5MP Smart Dual Illuminators Eyeball Camera
> Max 25 fps@5MP (16:9 video output).
> 120 dB true WDR, 3D NR.
> Smart Dual Illuminators.
> 40 m illumination distance.
> Super Adapt.
> Built-in MIC.
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.”
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Smart-Dual-Light/HAC-HDW1509T-IL-A=S2
Model: HDW1509T-IL-A-0280B-S2
Camera design: Eyeball
Network Camera Type: HDTV/Megapixel/Outdoor
Video interface: HDCVI
Pixel Resolution: 5
Net camera resolution: 5 – 7MP
Focal Length: 3.6 mm
Focal length: 3.6 – 4mm
Lens Mount: M12
Min. Illumination: 0.0001
Effective pixels: 2880 (H) × 1620 (V)
Electronic Shutter Speed: PAL: 1/3 s–1/100000 s, NTSC: 1/4 s–1/100000 s
Microphone: Built-in
Power options: 12V
Power supply requirements: 12 VDC ± 30%
Power consumption: 5.7
Environment: Outdoor
Colour: White
Dimensions: Φ106.0 × 93.6 mm
Units per Shipping Box: 1
Shipping Box Depth: 15
Shipping Box Height: 13.5
Shipping Box Weight: 0.67
Shipping Box Width: 14
Unit Calculated Volume: 0.002835
Product Net Weight: 0.49
Unit Calculated Weight: 0.67
CnCode: 85258900
Unit Box Width: 0.14
Unit Box Length: 0.15
Unit Box Height: 0.135
Full Description Line: Type HDTV/Megapixel/Outdoor|Video interface HDCVI|Focal Length 3.6 mm|Lens Mount M12|Min. Illumination 0.0001 Lux|Effective pixels 2880 (H) × 1620 (V)|Electronic Shutter Speed PAL: 1/3 s–1/100000 s, NTSC: 1/4 s–1/100000 s|Microphone Built-in|Power supply requirements 12 VDC ± 30%|Colour White|Dimensions Φ106.0 × 93.6 mm
Category Code: HSC
