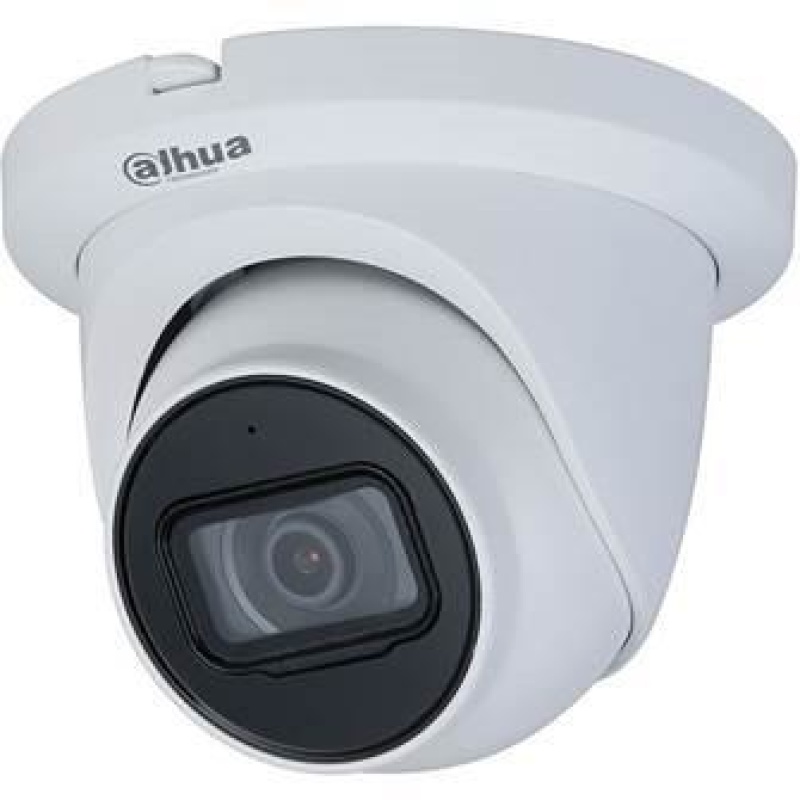

Description: 1/2.8″ CMOS, 1920 × 1080 @ 30FPS
Sensitivity: 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on
Fixed lens 2.8mm (107°)
True Day / Night with ICR Filter, Visible white LED up to 30 m
BLC / HLC / True WDR 130 dB, 3D DNR
Built-in microphone
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C
Power 12 VDC, 3.1 W max
.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Starlight/HAC-HDW1231TLMQ(-A)
Camera design: Eyeball
Network Camera Type: Fixed Dome/HDTV/Megapixel/Outdoor
Video interface: HDCVI
Pixel Resolution: 2
Net camera resolution: 2 – 4MP
Sensor size: 1/2.8″ CMOS
Focal Length: 2.8mm
Focal length: 2.8 – 3.5mm
Lens Mount: M12
Min. Illumination: 0.002
Effective pixels: 1920(H)×1080(V)
Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Microphone: Built-in
Power options: 12V
Power supply requirements: 12 VDC
Power consumption: 3.1
Environment: Outdoor
Dimensions: Φ109.9 mm × 88.1 mm
Units per Shipping Box: 1
Shipping Box Depth: 13
Shipping Box Height: 12
Shipping Box Weight: 0.439
Shipping Box Width: 11
Unit Calculated Volume: 0.001716
Product Net Weight: 0.28
Unit Calculated Weight: 0.439
CnCode: 85258900
Unit Box Width: 0.11
Unit Box Length: 0.13
Unit Box Height: 0.12
Full Description Line: Type Fixed Dome/HDTV/Megapixel/Outdoor|Video interface HDCVI|Sensor size 1/2.8″ CMOS|Focal Length 2.8mm|Lens Mount M12|Min. Illumination 0.002 Lux|Effective pixels 1920(H)×1080(V)|Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s|Microphone Built-in|Power supply requirements 12 VDC|Dimensions Φ109.9 mm × 88.1 mm
Category Code: HSC
