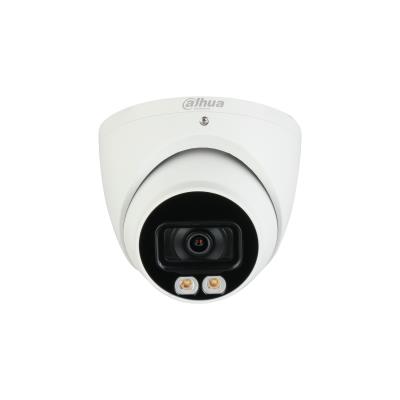

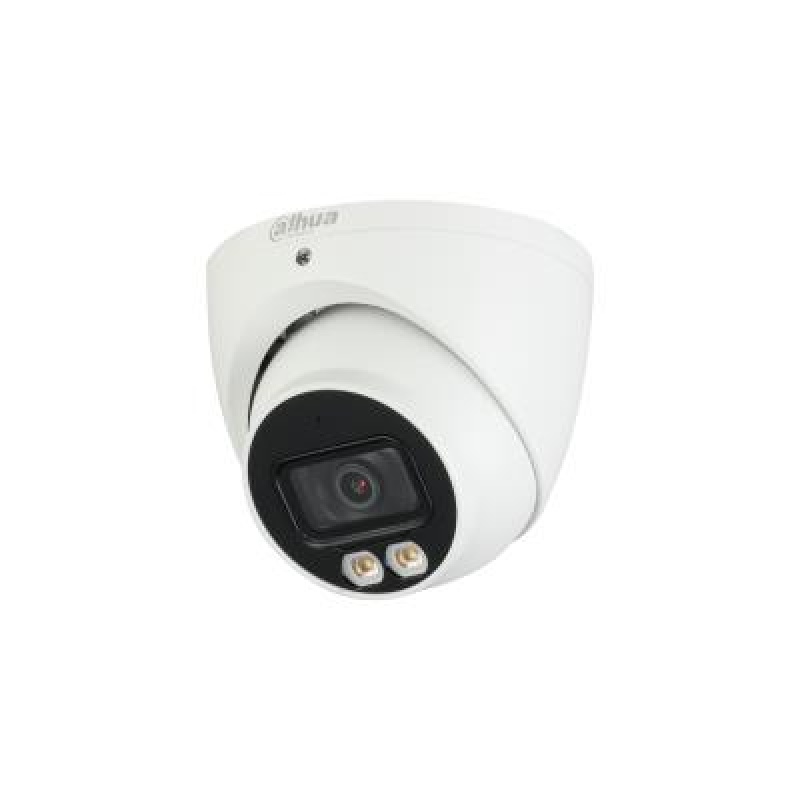

Description: HAC-HDW1200T-IL-A
2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
> Max. 30 fps@1080p.
> 3D NR.
> Smart Dual Light.
> 40 m illumination distance.
> Super Adapt.
> Built-in mic.
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
Vendor Homepage: www.dahuasecurity.com/la/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Smart-Dual-Light/HAC-HDW1200T-IL-A=S6
Model: HAC-HDW1200T-IL-A-0280B-S6
Camera design: Eyeball
Network Camera Type: Fixed/HDTV/Megapixel
Video interface: HDCVI
Pixel Resolution: 2
Net camera resolution: 2 – 4MP
Sensor size: 2 MP CMOS
Focal Length: 2.8 mm; 3.6 mm
Focal length: 3.6 – 4mm
Lens Mount: M12
Min. Illumination: 0.01
IR Illumination: Yes
Electronic Shutter Speed: PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s
Microphone: Built-in
Number of channels: 1
Power supply requirements: 12 VDC ± 30%
Power consumption: 4.1
Dimensions: φ106.0 mm × 99.2 mm
Units per Shipping Box: 1
Shipping Box Depth: 14.8
Shipping Box Height: 13.7
Shipping Box Weight: 0.65
Shipping Box Width: 13.9
Unit Calculated Volume: 0.002818
Product Net Weight: 0.45
Unit Calculated Weight: 0.65
CnCode: 85258900
Unit Box Width: 0.139
Unit Box Length: 0.148
Unit Box Height: 0.137
Full Description Line: Type Fixed/HDTV/Megapixel|Video interface HDCVI|Sensor size 2 MP CMOS|Focal Length 2.8 mm; 3.6 mm|Lens Mount M12|Min. Illumination 0.01 Lux|Electronic Shutter Speed PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s|Microphone Built-in|Number of channels 1|Power supply requirements 12 VDC ± 30%|Dimensions φ106.0 mm × 99.2 mm
Category Code: HSC
