Description: HAC-HDBW1200EA-0280B-S6

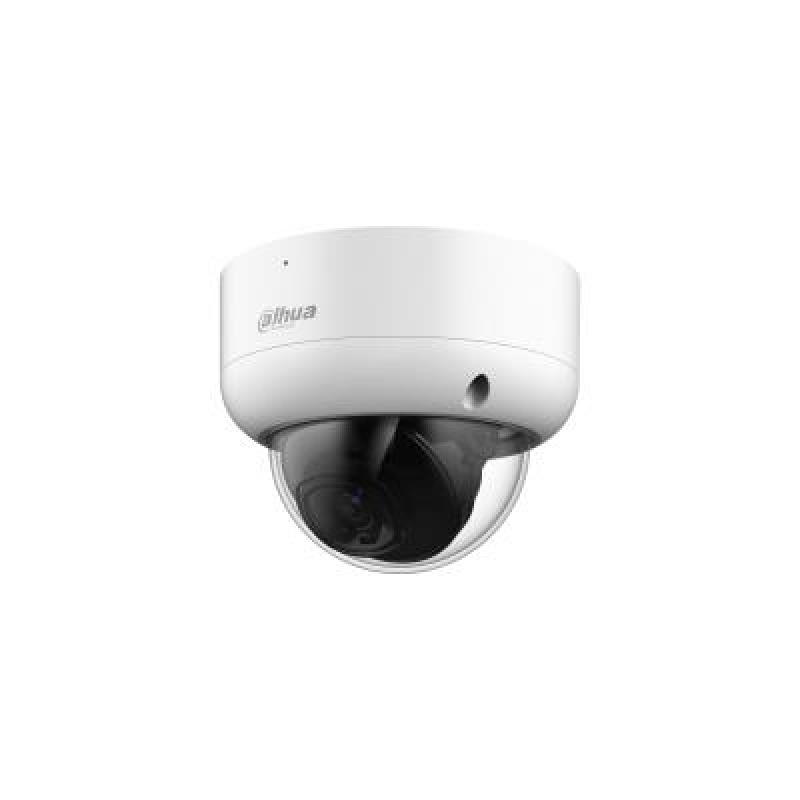

CAMERA HDCVI 1080P IR DOME/ HAC-HDBW1200EA-0280B-S6 DAHUA
> Max. 30 fps@1080p.
> Smart IR Illumination.
> 40 m illumination distance.
> Super Adapt.
> 2.8 mm fixed lens (102°)
> CVI/CVBS/AHD/TVI switchable.
> IP67, IK10, 12 VDC.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/1080-P/HAC-HDBW1200EA(-A)=S6
Model: HAC-HDBW1200EA-0280B-S6
Network Camera Type: Fixed Dome
Pixel Resolution: 2
Net camera resolution: 2 – 4MP
Sensor size: 2 MP CMOS
Focal Length: 2.8 mm;3.6 mm
Focal length: 2.8 – 3.5mm
Lens Mount: M12
Min. Illumination: 0.001
IR Illumination: Yes
Effective pixels: 1080p (1920 × 1080)
Electronic Shutter Speed: PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s
Power options: 12V
Power supply requirements: 12 VDC ± 30%
Environment: Outdoor
Dimensions: Φ112.0 mm × 89.1 mm
Units per Shipping Box: 1
Shipping Box Depth: 15
Shipping Box Height: 14
Shipping Box Weight: 0.63
Shipping Box Width: 14
Unit Calculated Volume: 0.00294
Product Net Weight: 0.44
Unit Calculated Weight: 0.63
CnCode: 85258900
Unit Box Width: 0.14
Unit Box Length: 0.15
Unit Box Height: 0.14
Full Description Line: Type Fixed Dome|Sensor size 2 MP CMOS|Focal Length 2.8 mm;3.6 mm|Lens Mount M12|Min. Illumination 0.001 Lux|Effective pixels 1080p (1920 × 1080)|Electronic Shutter Speed PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s|Power supply requirements 12 VDC ± 30%|Dimensions Φ112.0 mm × 89.1 mm
Category Code: HSC
