Description: HFW1200T-0280B-S6

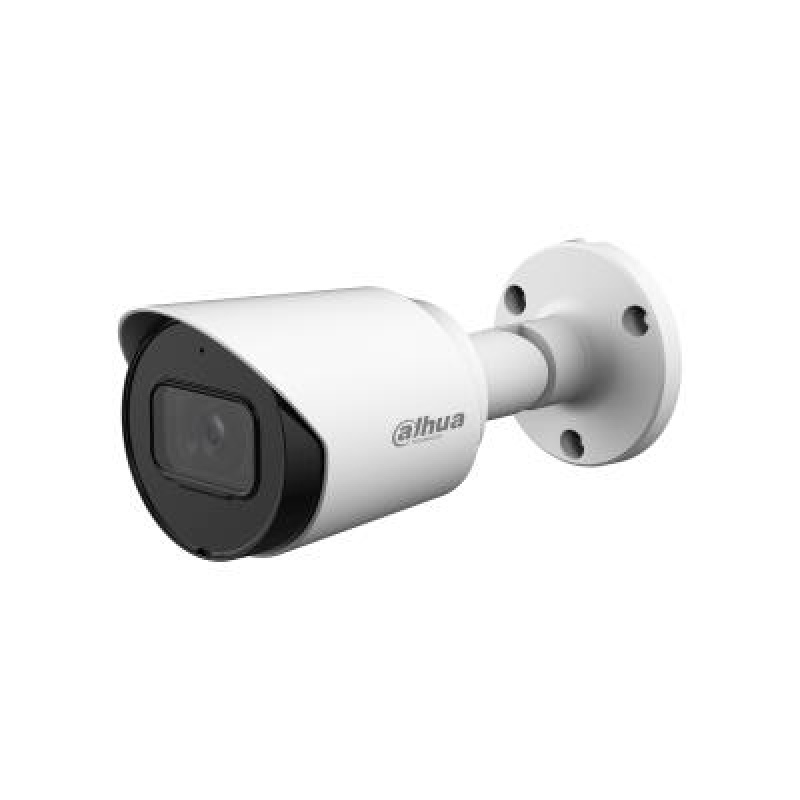

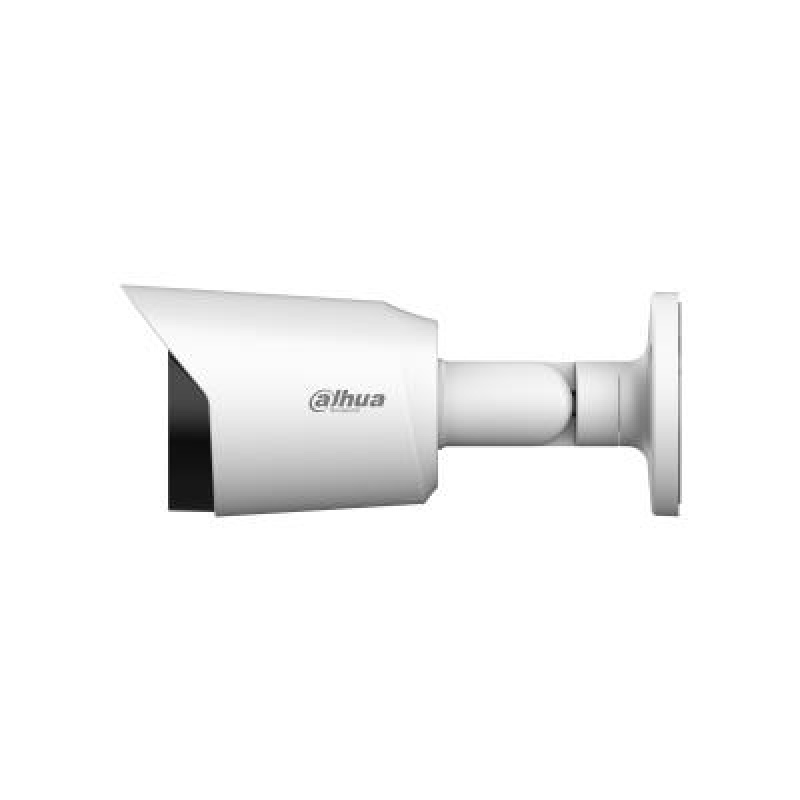

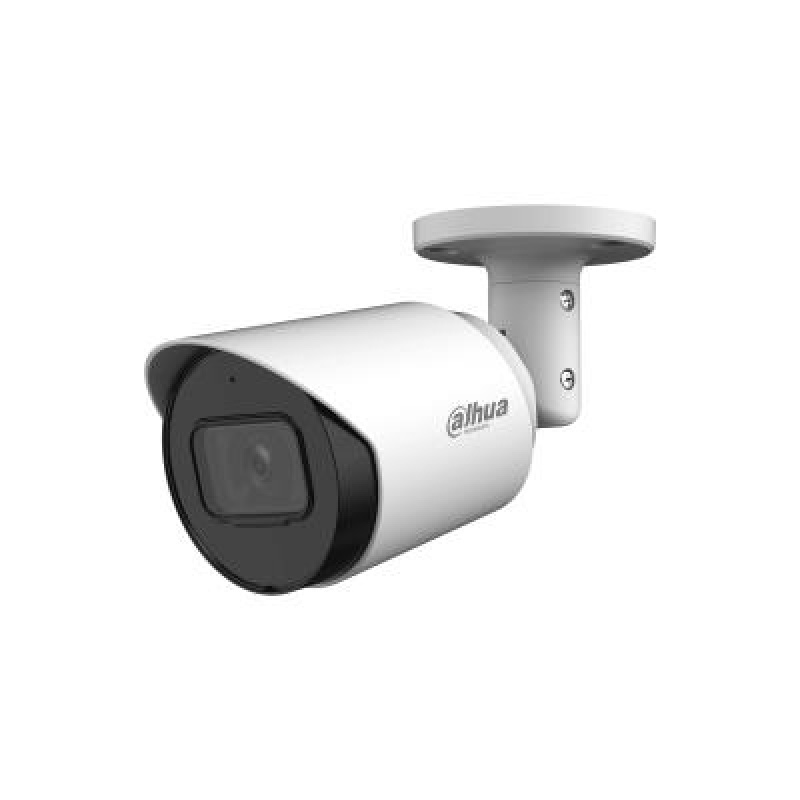

CAMERA HDCVI 1080P IR BULLET / HAC-HFW1200T-0280B-S6 DAHUA
2MP IR HDCVI Fixed-focal Bullet Camera
* The parameters and datasheets below can only be applied to1200-S6 series.
> Max. 30 fps@1080p.
> Smart IR Illumination.
> 30 m illumination distance.
> Super Adapt.
> Built-in Mic.
> 3.6 mm fixed lens (2.8mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/1080-P/HAC-HFW1200T(-A)=S6
Model: HAC-HFW1200T-0280B-S6DAHUA
Camera design: Bullet
Network Camera Type: Outdoor
Video interface: HDCVI
Pixel Resolution: 2
Net camera resolution: 2 – 4MP
Focal Length: 2.8 mm;3.6 mm
Focal length: 3.6 – 4mm
Lens Mount: M12
Min. Illumination: 0.001
IR Illumination: Yes
Effective pixels: 1920 (H) × 1080 (V)
Electronic Shutter Speed: PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
Power options: 12V
Power supply requirements: 12 VDC ± 30%
Power consumption: 3.2
Colour: White
Dimensions: 174.5 × 70.6 × 72.3 mm
Units per Shipping Box: 20
Shipping Box Depth: 48
Shipping Box Height: 23
Shipping Box Weight: 10.4
Shipping Box Width: 38.5
Unit Calculated Volume: 0.002125
Product Net Weight: 0.34
Unit Calculated Weight: 0.52
CnCode: 85258900
Unit Box Width: 0.092
Unit Box Length: 0.205
Unit Box Height: 0.092
Full Description Line: Type Outdoor|Video interface HDCVI|Focal Length 2.8 mm;3.6 mm|Lens Mount M12|Min. Illumination 0.001 Lux|Effective pixels 1920 (H) × 1080 (V)|Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s|Power supply requirements 12 VDC ± 30%|Colour White|Dimensions 174.5 × 70.6 × 72.3 mm
Category Code: HSC
